Note the clearance dimensions. The profiles shown below require a nonstandard light fixture and additional lead time.

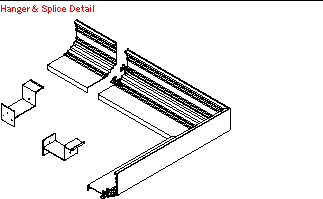

Hangers & Splices
Positive locking splices assure virtually invisible joints and a strong assembly. The light cove hanger bracket doubles as an integral shelf for a standard tube lighting strip. Hangers are provided and should be installed 4’ o.c. and adjacent to joints.
Inside and outside corners at any angle are factory mitered and welded for clean lines and the elimination of labor intensive fieldwork. Straight lengths are spliced to corners, joints are filled with caulk, and the entire system can be painted right along with the wall or factory finished in a custom color.
Custom Reflectors create unique lighting. Combine any extruded aluminum light cove with a variety of custom reflectors to create exactly the lighting effect desired.
AAMA 2604 Powder Coating Finishes Download PDF
AAMA 2605 Powder Coating Finishes Download PDF
Therapeutic Powder Coat Finishes Download PDF
Green By Design
- Products contribute to LEED® certification
- In-House Finishes
- Biodegradable pre-treatment and powder coating (no phosphates)
- No hazardous waste
- No VOC’s
- No Heavy Metals
- Reference our sustainability page for more information.
Light Cove 1066 & 1026 Section Detail

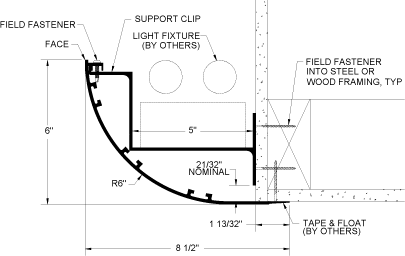

Light Cove 1066 Detail
Light Cove 1066R Detail
Light Cove 1076 Detail

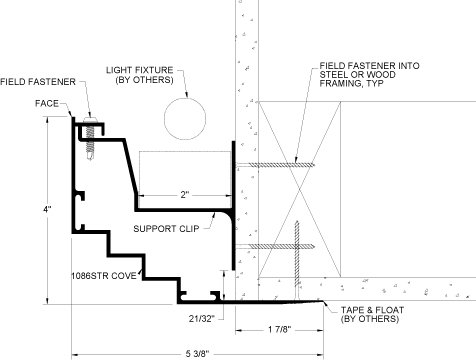

Light Cove 1086STR Detail

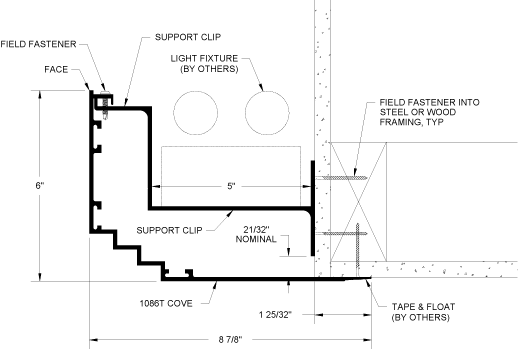

Light Cove 1086T Detail

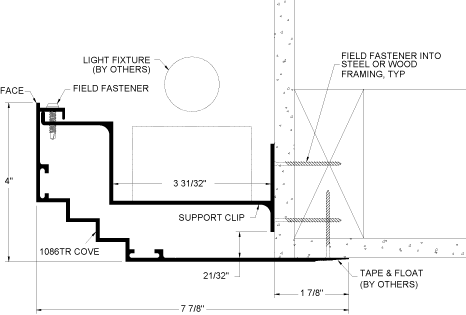

Light Cove 1086TR Detail
Light Cove 1096 Detail
Light Cove 1106P Detail
Light Cove 1106T Detail

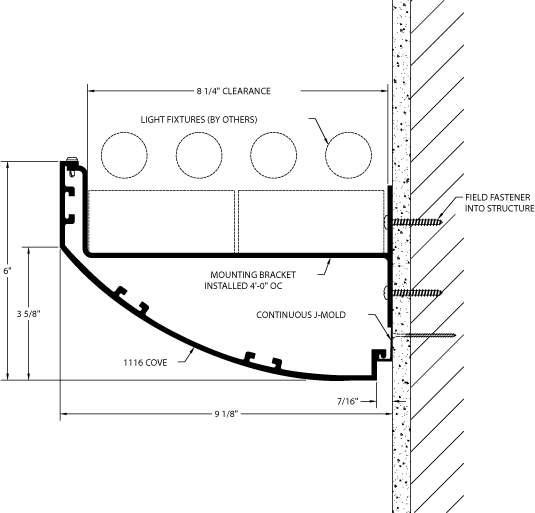

Light Cove 1116 Detail
Light Cove 1206T Detail
WTC1 Light Cove Detail
Light Cove Specifications
Installation Instructions – Light Cove
Installation Instructions – Light Cove WTC1
Cleaning & Maintenance
