Suspended or Mounted Corrugated Acoustical Metal Baffles

ALPRO® Ceiling Baffles are factory assembled, modular units of formed perforated metal skin, reinforced by structural components, containing encapsulated acoustical pads, which provide an affordable solution for any space where noise abatement is required.

ALPRO Wall Baffles are available in 3 corrugation patterns, finished in your choice of standard or custom color matched powder coating and may be hung vertically or horizontally.

Features & Benefits

Metal Facing Options

  • Aluminum – .032″ thickness in stucco-embossed or smooth surface
  • Steel – 22, 24 or 26 gauge thickness, G-90 galvanized smooth surface
  • For Vertical Ceiling Baffles, Backer Panels are made of the same metal as the face and provide total encapsulation of the sound absorptive material and enhanced acoustical performance.

Baffle Configuration

  • Perforated metal skins may be corrugated or flat
  • Acoustical media is 2” thick, 2# density fiberglass encapsulated in PVC
  • Baffles ship complete with appropriated mounting hardware

Frames

  • Aluminum framing members provide the skeletal structure of the baffle.
  • Standard baffle thickness is 2 inches, with custom thicknesses available from 1 inch up to 6 inches.

Stabilizers

Internal stabilizers are required for baffles over 48” long. The exact quantity and spacing of stabilizers will depend on material thickness and baffle design.

Without Stabilizer

Single Stabilizer

Double Stabilizer

Corrugation Patterns

Pattern C
Pattern F

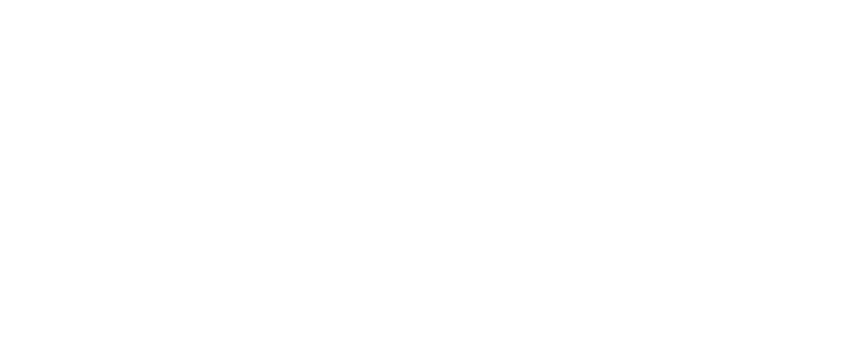

Pattern J
Flat Baffle

Finish Options

AAMA 2604 Powder Coat Finishes Download PDF

AAMA 2605 Powder Coat Finishes Download PDF

Antimicrobial Finishes

Perforation Pattern

Green By Design

  • Products contribute to LEED® certification
  • In-House Finishes
    • Biodegradable pre-treatment powder coat (no phosphates)
    • No hazardous waste
    • No VOC’s
    • No Heavy Metals
    • Reference our sustainability page for more information.

Ceiling Baffle Installation Options

FLUSHMOUNT INSTALLATION OPTIONS

OFFSET MOUNT INSTALLATION OPTIONS

ANGLE MOUNT INSTALLATION OPTIONS

EYEBOLT INSTALLATION OPTIONS

HORIZONTAL TUNNEL MOUNT INSTALLATION OPTION

Product Data

Mounted Corrugated Ceiling Baffles

Suspended Corrugated Ceiling Baffles

Industrial Noise Solutions Brochure

Specifications

Cleaning & Maintenance
