Series A

Series A is a narrow line design for use with regress acoustical tile. The grid slot will accept a bolt head permitting unlimited fastening and unfastening of partition headers without defacing grid or acoustical materials. Slot size is 1/4″. Module size available as required. Intersections can be cross routed, butt cut or mitered.

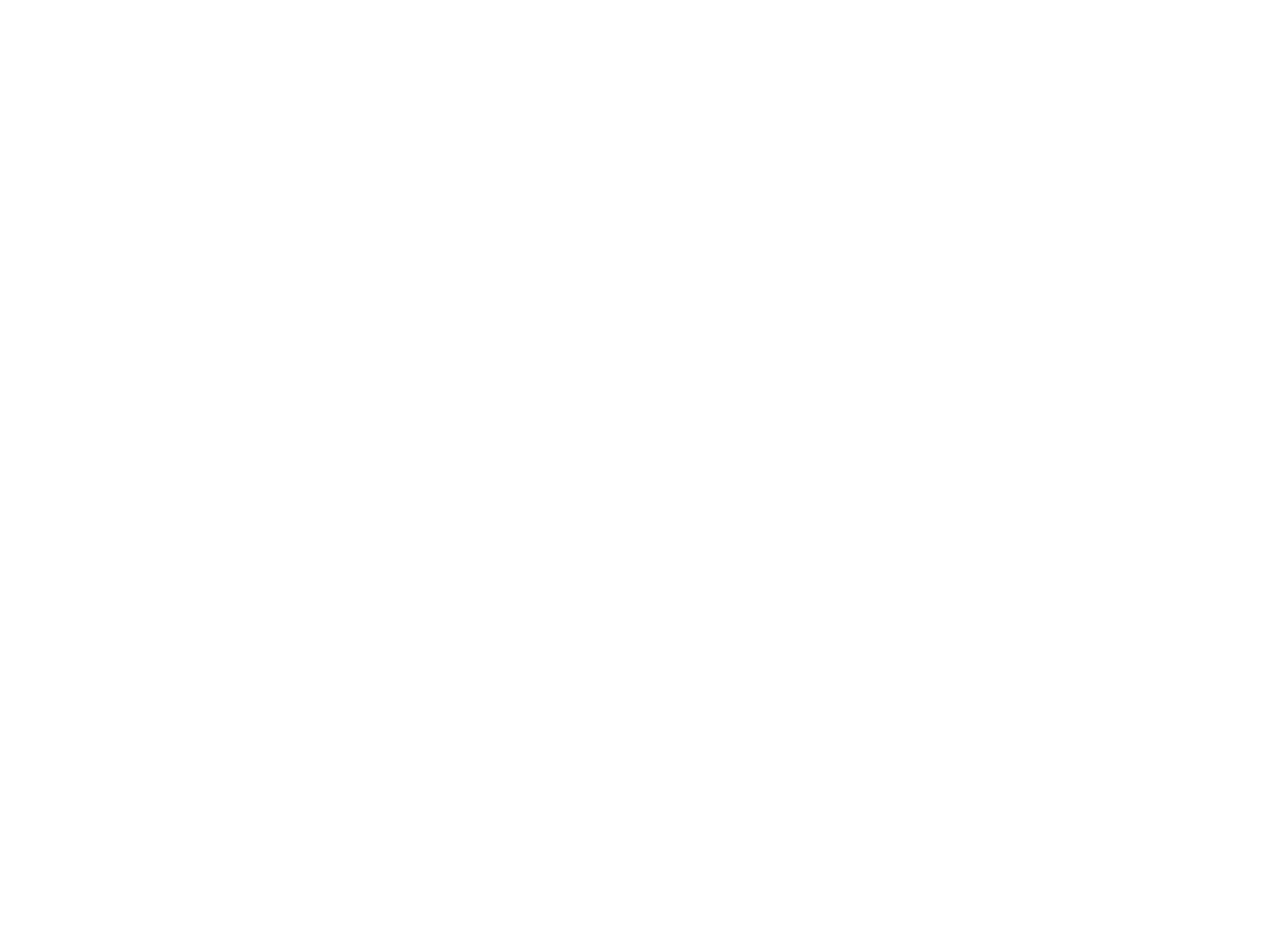

Series A Typical Assembly – Clip System

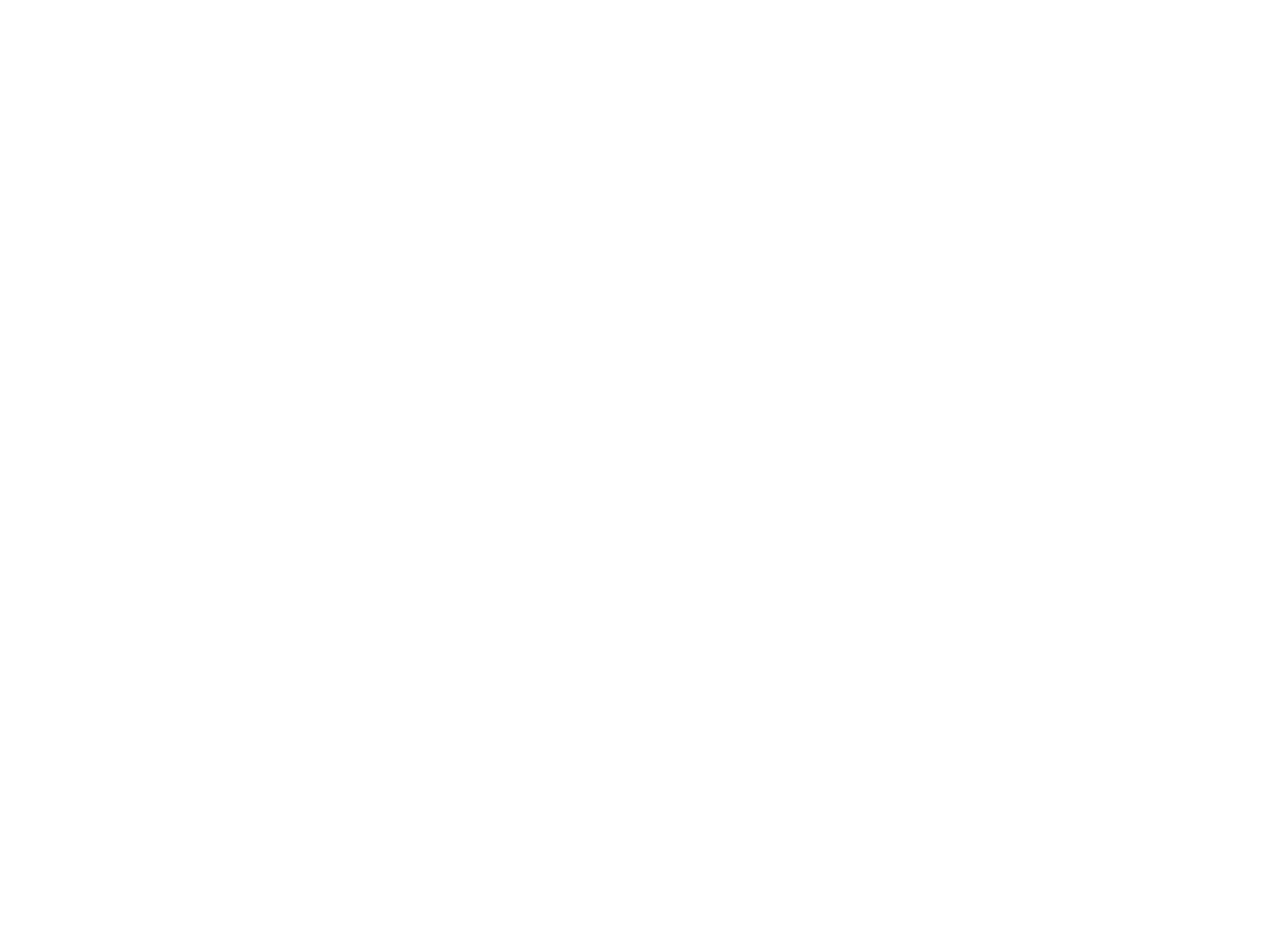

Series A Typical Assembly – Snap System

Type

A

B

C

Tile

Slot

A

9/16"

1-1/2"

5/16"

5/8",3/4"

1/4"

A-1

9/16"

1-1/2"

7/16"

3/4"

1/4"

A-2

9/16"

1-7/8"

5/16"

5/8",3/4"

1/4"

A-3

9/16"

2"

5/16"

5/8",3/4"

1/4"

A-4

9/16"

2-1/4"

5/16"

5/8",3/4"

1/4"

Series B

Series B is a narrow line design for use with regress acoustical tile. The grid slot will accept a threaded bolt permitting unlimited fastening and unfastening of partition headers without defacing grid or acoustical materials. The slot size of Series B is offered in 5/16″ thread, 1/8″ thread, and 1/4″ thread. Module size available as required. Intersections can be cross routed, butt cut or mitered.

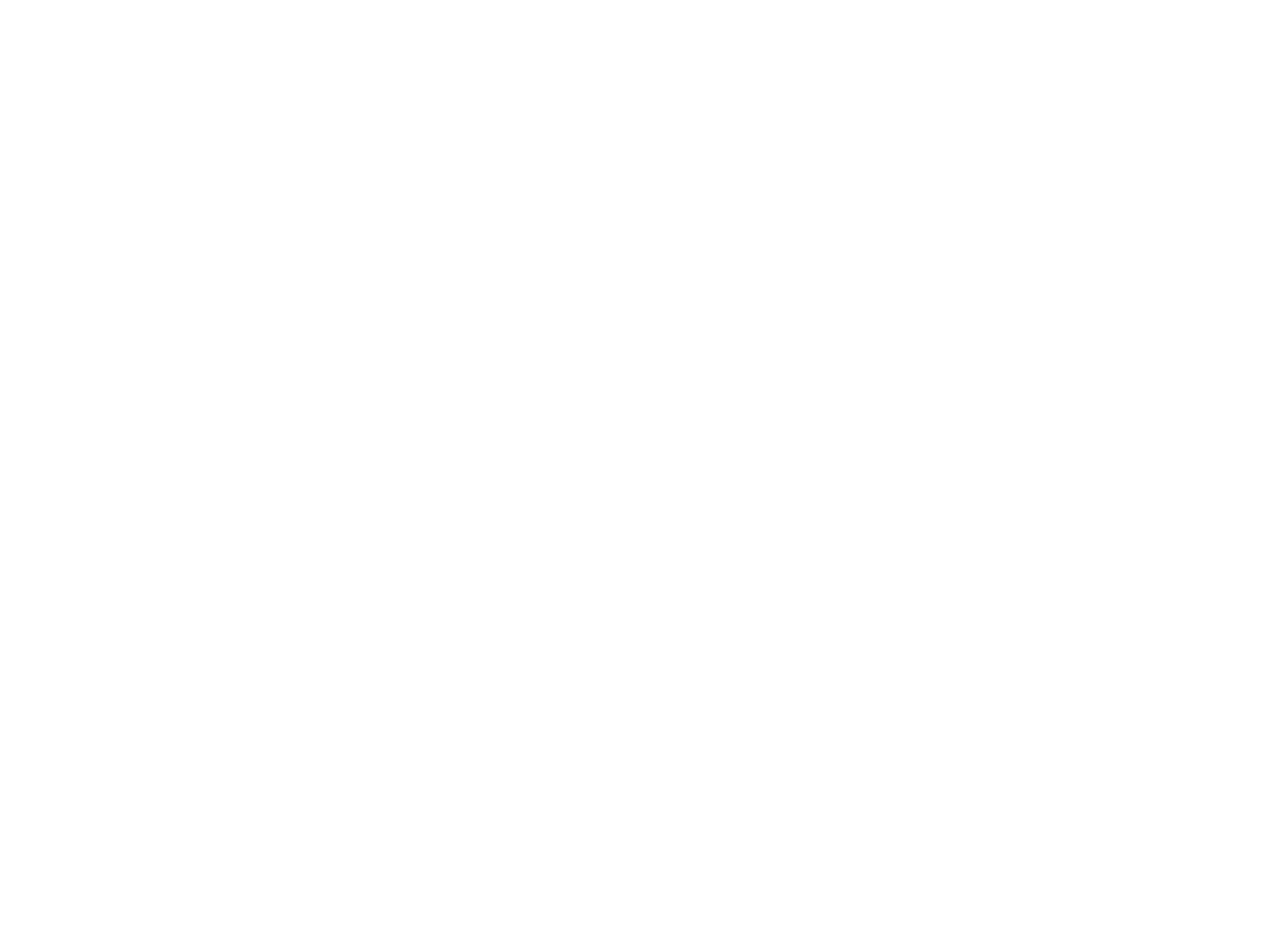

Series B Typical Assembly – Clip System

Series B Typical Assembly – Snap System

Type

A

B

C

Tile Thickness

Slot Size

B

9/16"

1-1/2"

5/16"

5/8",3/4"

5/16" thread

B-1

9/16"

1-1/2"

7/16"

3/4"

5/16" thread

B-2

9/16"

1-1/2"

3/8"

5/8",3/4"

5/16" thread

B-3

9/16"

2-1/4"

5/16"

5/8",3/4"

5/16" thread

B-4

9/16"

1-7/8"

5/16"

5/8",3/4"

5/16" thread

B-5

9/16"

1-7/8"

3/8"

5/8",3/4"

5/16" thread

B-6

9/16"

1-7/8"

5/16"

5/8",3/4"

1/8" thread

B-7

9/16"

1-7/8"

5/16"

5/8",3/4"

1/4" thread

B-8

9/16"

1-7/8"

3/8"

5/8",3/4"

1/4" thread

B-9

9/16"

1-1/2"

3/8"

5/8",3/4"

1/4" thread

B-10

9/16"

2-1/4"

3/8"

5/8",3/4"

1/8" thread

B-11

9/16"

1-1/2"

7/16"

3/4"

1/4" thread

B-12

9/16"

1-1/2"

5/16"

5/8",3/4"

1/8" thread

B-13

9/16"

2-1/16"

3/8"

5/8",3/4"

1/4" thread

B-14

9/16"

2-1/4"

3/8"

5/8",3/4"

1/4" thread

B-15

9/16"

1-3/4"

3/8"

5/8",3/4"

1/4" thread

B-16

9/16"

1-1/8"

3/8"

5/8",3/4"

1/4" thread

B-17

9/16"

1-15/16"

3/8"

5/8",3/4"

1/8" thread

B-60

9/16"

1-1/2"

9/32"

5/8",3/4"

5/16" thread

Series C

Series C is a narrow line design for use with standard 2′ x 4′ or 2′ x 2′ lay in acoustical board of any thickness. The grid slot will accept a threaded bolt permitting unlimited fastening and unfastening of partition headers without defacing grid or acoustical materials. Tile must be held to a tolerance of 23-3/4″ (+0, -1/8″) by 47-3/4″ (+0, -1/8″). Module size available as required. Intersections are cross-routed. See drawings for actual appearance.

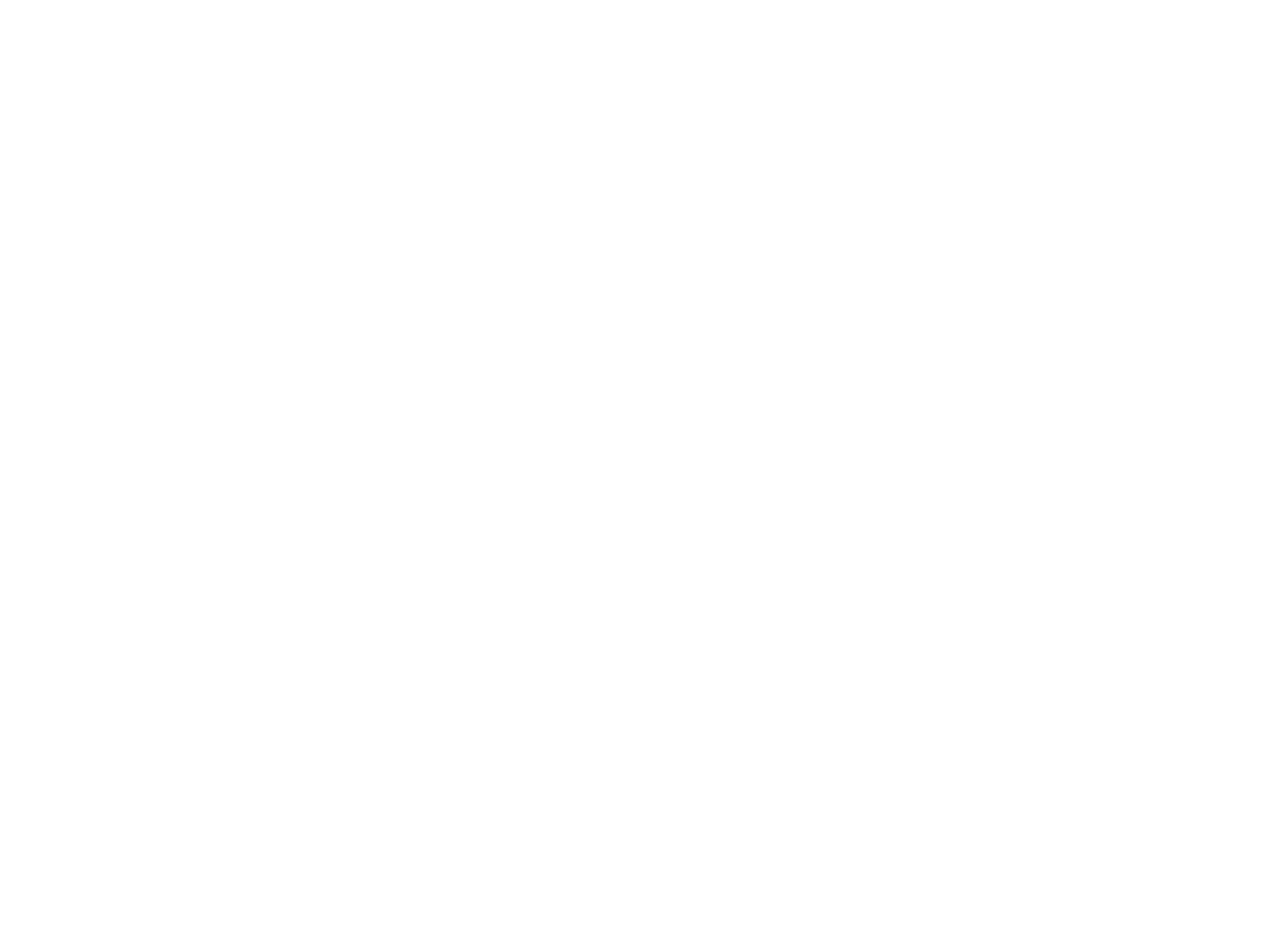

Series C Typical Assembly – Clip System

Type

A

B

Slot Size

C-1

3/4"

1-1/2"

No. 2 thread (Approx. 1/8")

C-1A

9/16"

1-1/2"

No. 2 thread (Approx. 1/8")

C-2

3/4"

1-7/8"

No. 2 thread (Approx. 1/8")

C-3

3/4"

2-1/4"

No. 2 thread (Approx. 1/8")

C-4

1"

1-1/2"

No. 2 thread (Approx. 1/8")

C-5

15/16"

1-5/8"

1/4" - 20

C-6

1-1/2"

2"

1/4" - 20

Series D

Series D is a narrow line design for use with regress acoustical tile. Module size available as required. Intersections are cross-routed.

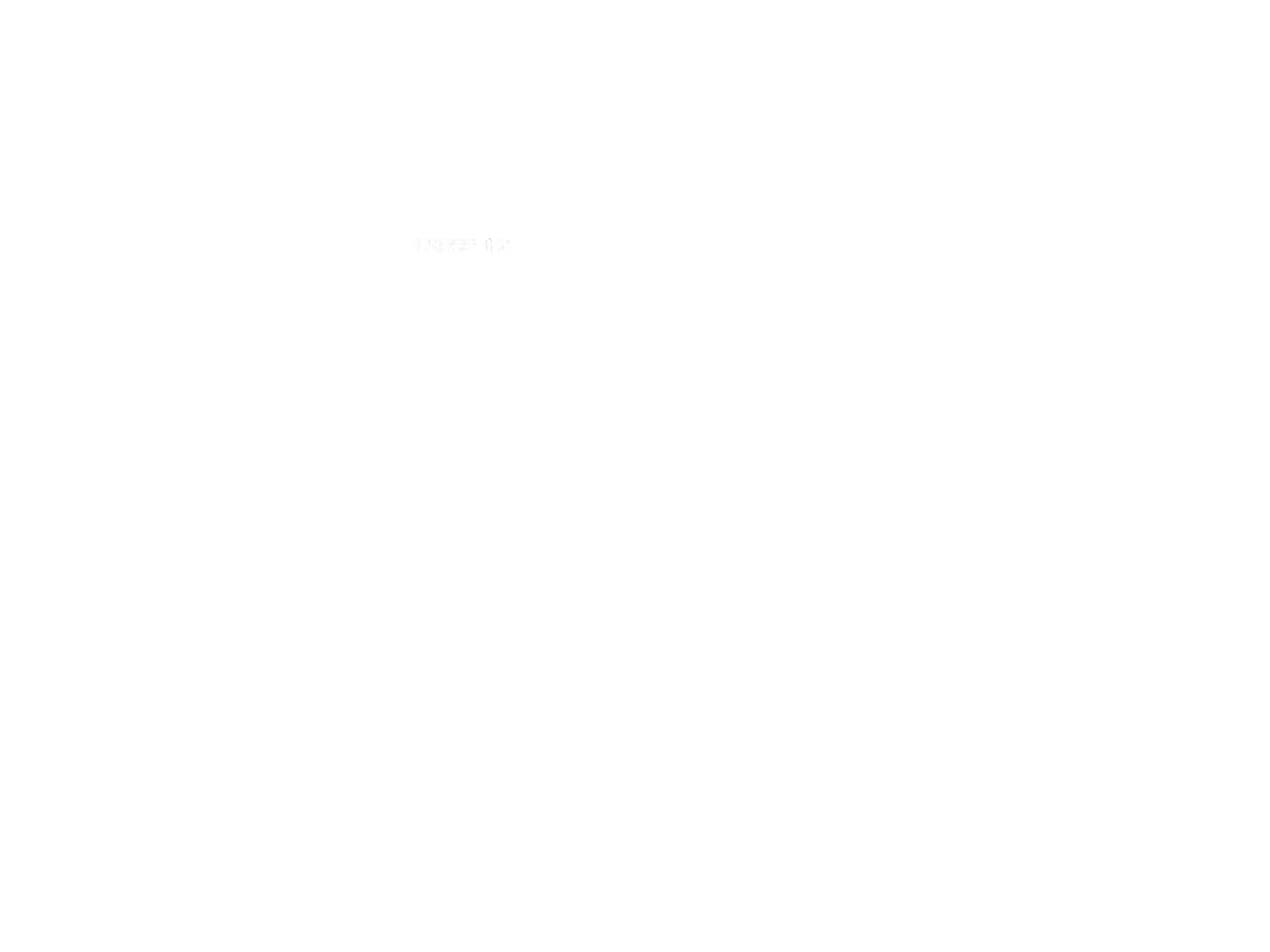

Series D Typical Assembly – Clip System

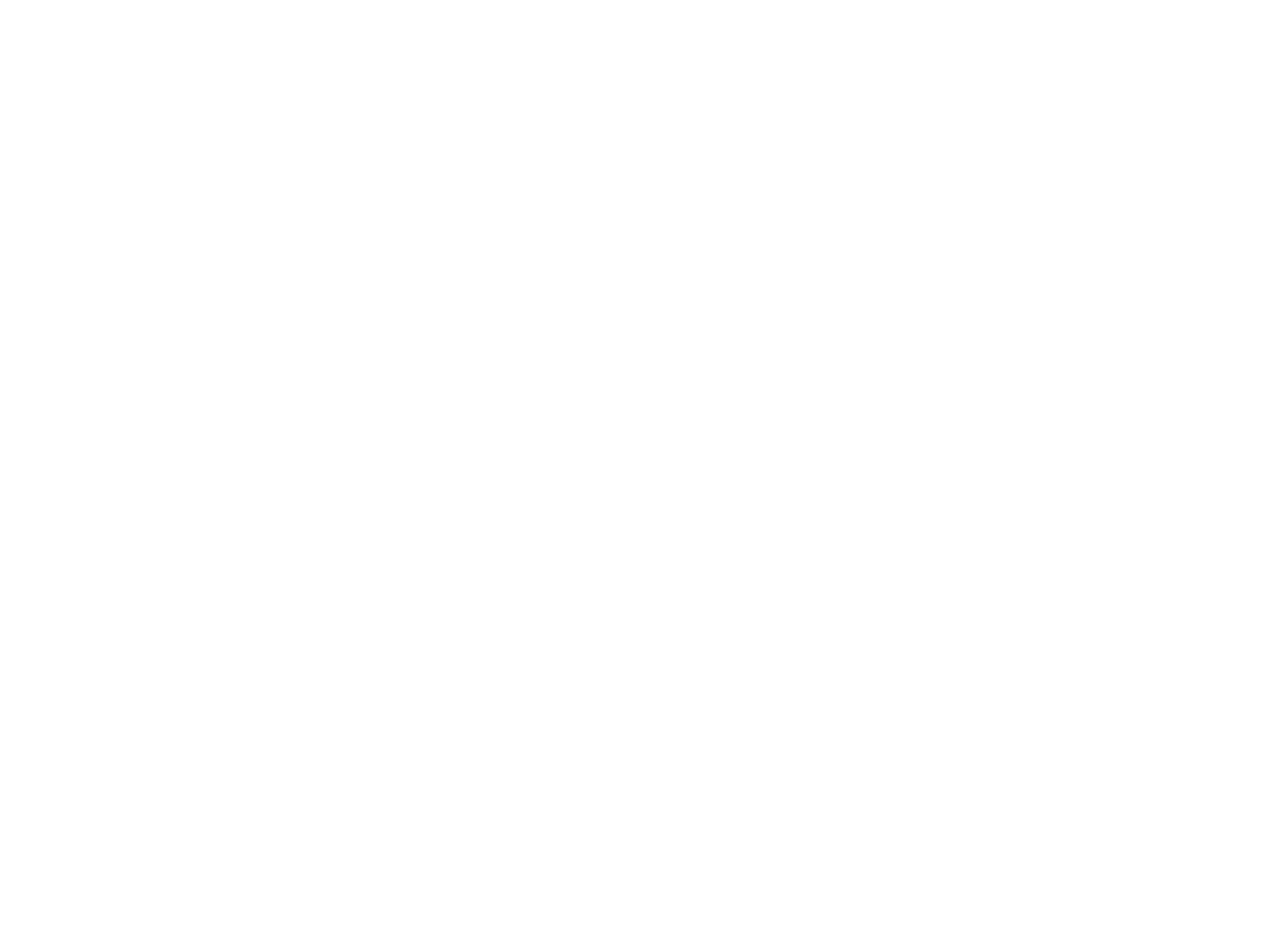

Series D Typical Assembly – Snap System

Type

A

B

C

Tile Thickness

D

9/16"

1-1/2"

5/16"

5/8",3/4"

D-1

9/16"

1-1/2"

7/16"

3/4"

D-2

9/16"

1-7/8"

5/16"

5/8",3/4"

D-3

9/16"

2-1/4"

5/16"

5/8",3/4"

D-4

5/8"

1-1/2"

3/8"

3/4"

D-5

9/16"

1-1/2"

7/32"

5/8",3/4"

Finish Options

AAMA 2604 Powder Coat Finishes Download PDF

Green By Design

  • Products contribute to LEED® certification
  • In-House Finishes
    • Biodegradable pre-treatment powder coat (no phosphates)
    • No hazardous waste
    • No VOC’s
    • No Heavy Metals
    • Reference our sustainability page for more information.

Product Data

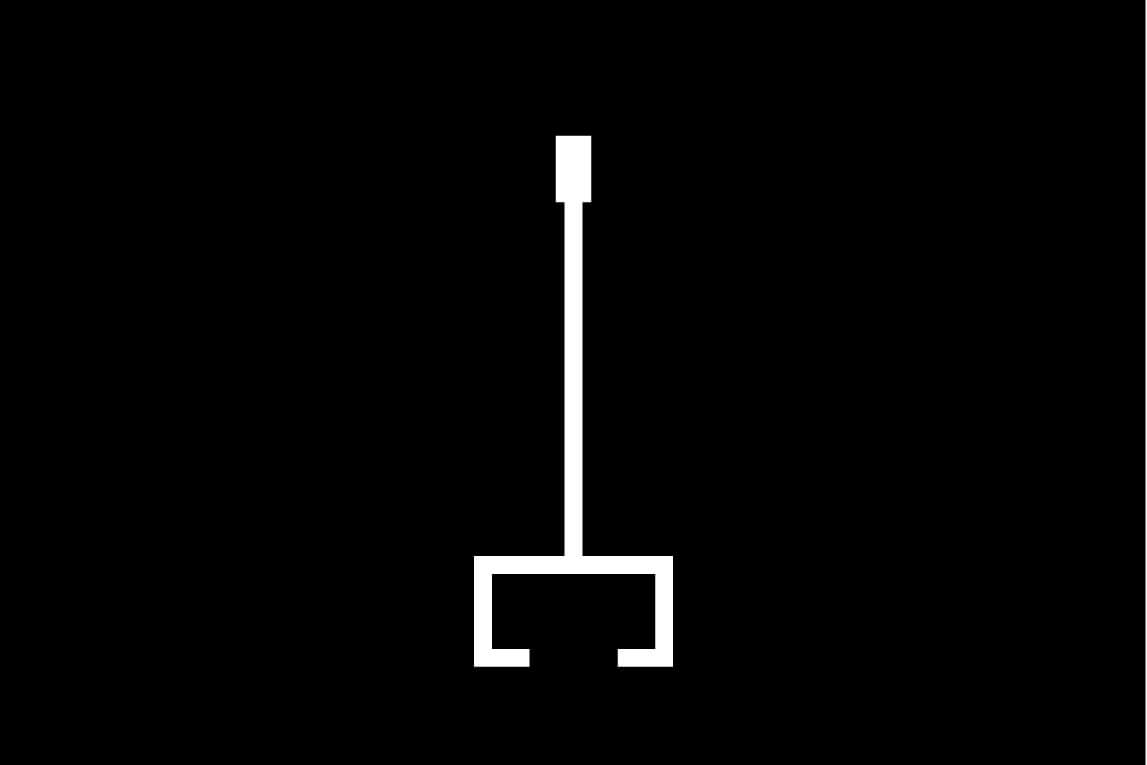

Series A Profile Detail

Series A Typical Assembly – Clip System Detail

Series A Typical Assembly – Snap System Detail

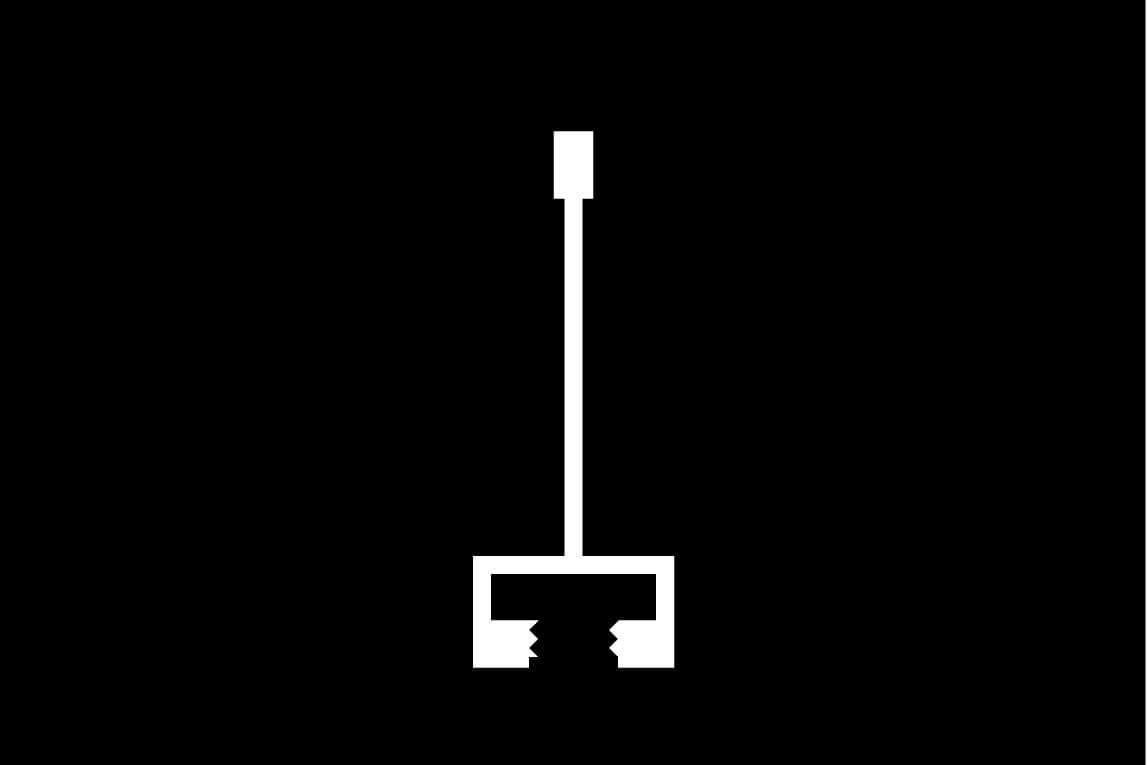

Series B Profile Detail

Series B Typical Assembly – Clip System Detail

Series B Typical Assembly – Snap System Detail

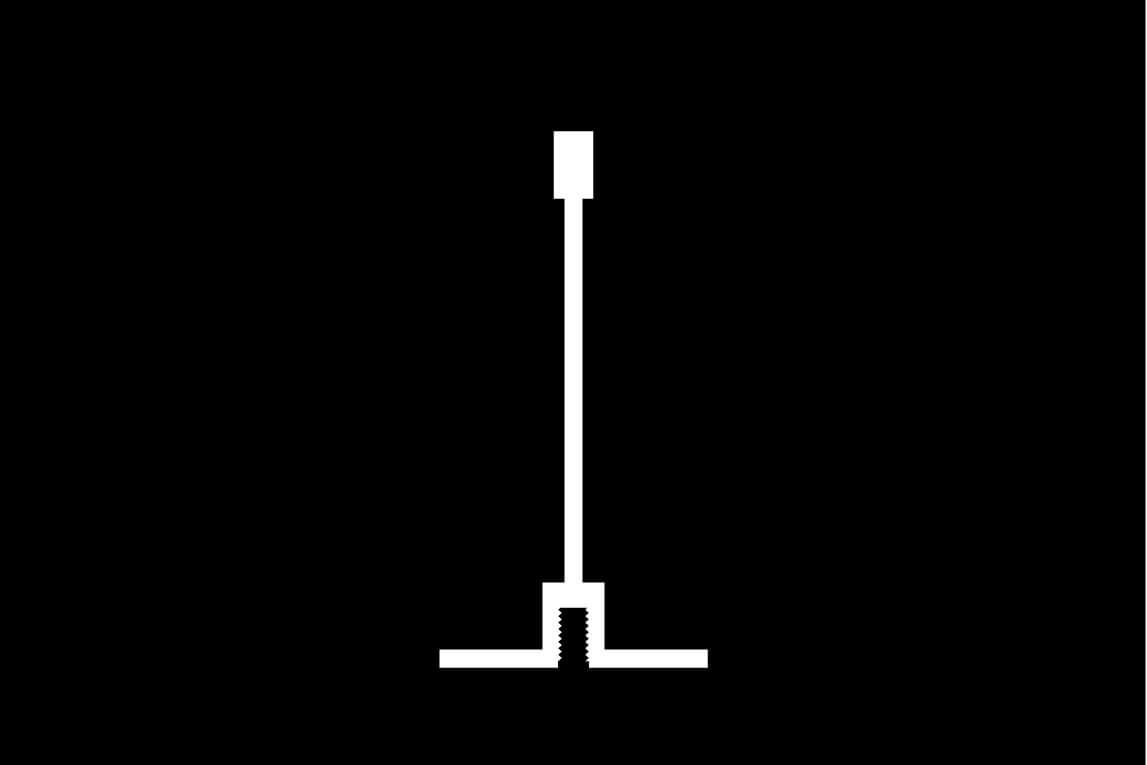

Series C Profile Detail

Series C Typical Assembly – Clip System Detail

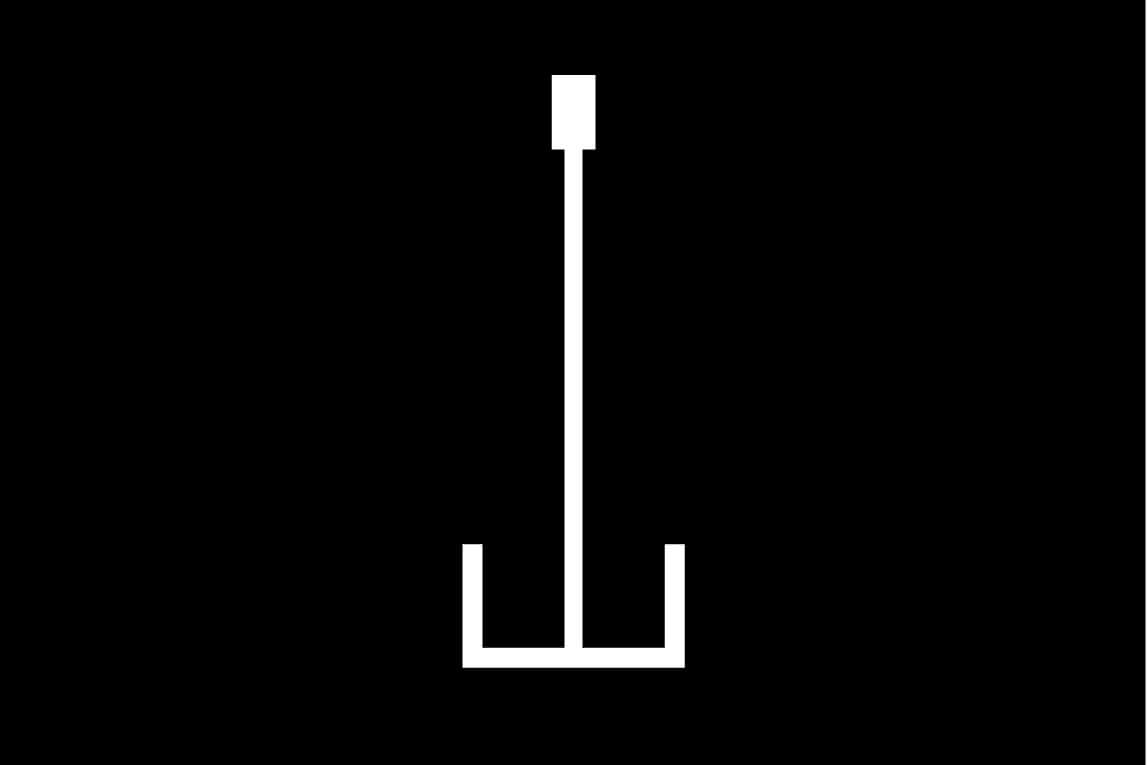

Series D Profile Detail

Series D Typical Assembly – Clip System Detail

Series D Typical Assembly – Snap System Detail

Series Grid Specifications

Series A & B Grid Brochure

Series C & D Grid Brochure

Cleaning & Maintenance
