WinLok™ Accessible Soffit System
Concealed Suspension with 100% Downward Accessible Panels
Come Rain, Shine, or even Hurricanes, Gordon’s WinLok™ Soffit Systems are here to stay! Approved through Miami Dade County’s stringent NOA certification requirements, our WinLok™ Soffit System meets all testing requirements and performs effectively in extreme weather conditions, without compromising the aesthetics of Design or the functionality of 100% accessibility for effortless maintenance and servicing. One of the prominent design features of the WinLok™ Soffit System is the large panel sizes with no requirement for exposed fasteners. Gordon’s WinLok™ Soffit System panels are available up to 57” X 144” and achieved Miami-Dade County Florida Notice of Acceptance with a 30” x 96” Panel. Offered in factory-applied, super-durable, AAMA 2604 & 2605 exterior powder coated finishes, Gordon’s WinLok™ Soffit System is an ideal choice for areas where buildings are susceptible to extreme weather conditions, such as hurricane and tornadic winds.
U.S. Patent No. 10113317, 11168477, 12049758
Miami-Dade County
Florida, Notice of acceptance
N.O.A. No 20.0713.01
Expiration date: December 30, 2025
http://www.miamidade.gov/building/library/productcontrol/noa/20071301.pdf
Features & Benefits
Panel Options
- Panel Width: up-to 57”
- Panels Length: up-to 144”
- Surface: Perforated or Non-Perforated
- Configurations: Flat
- Standard shapes: Square, Rectangle
Panel Material Options
- Aluminum: 0.040″ – 0.188″
- Stainless Steel: 20 ga. – 16 ga.
Suspension

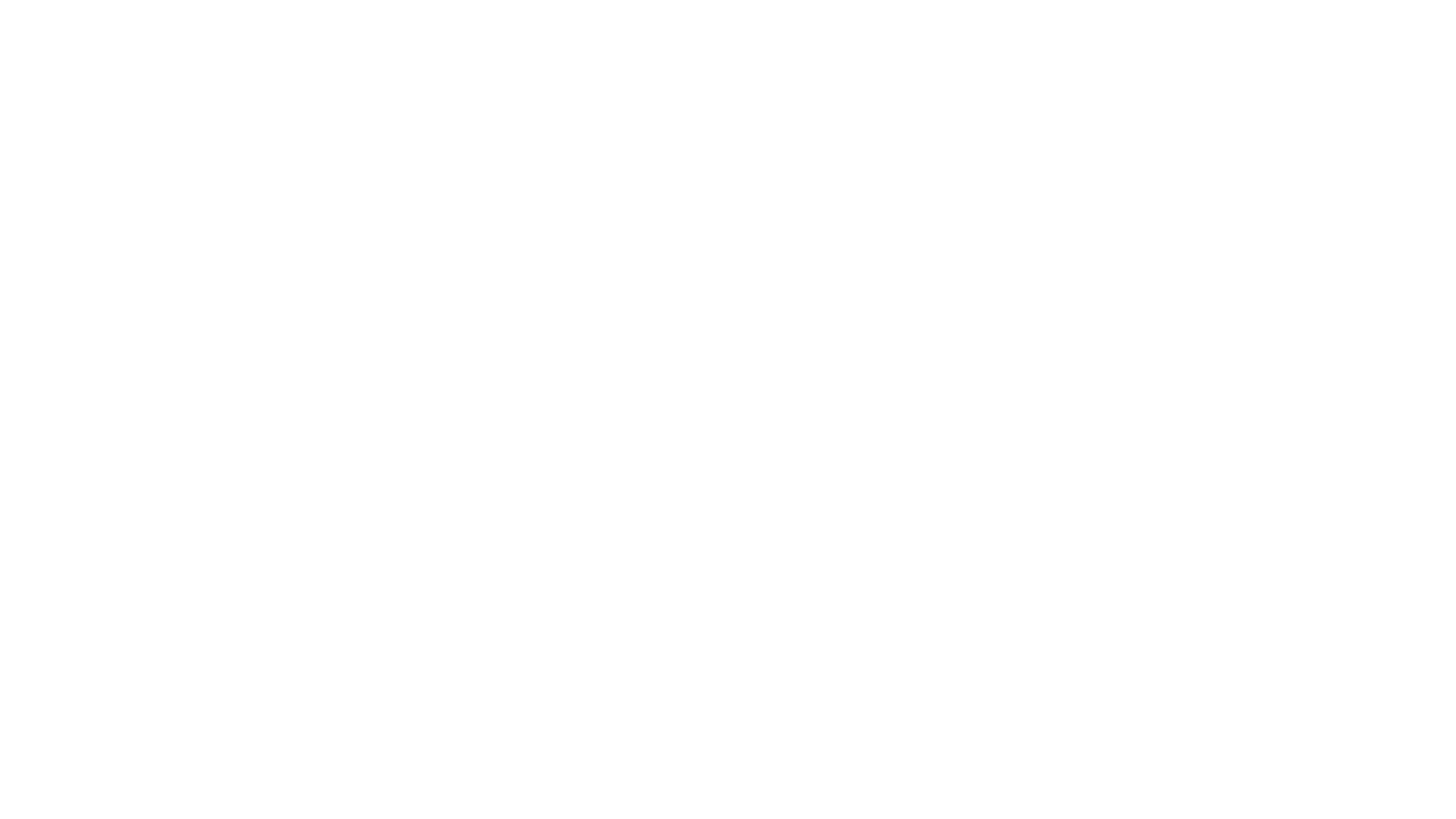

- Heavy Duty Extruded Aluminum Suspension
- Configurations – Faceted, Sloped, and Flat
- Attachment clips with horizontal torsion spring (100 lbs per clip holding force with .050 aluminum panels)
- Custom security access tools
- Reveals Available
- Typically wall to wall applications with Perimeter angles / channels
- Engineered to meet your design requirements
Accessories
- Flexible hose sprinklers
- Custom speaker panels
- Columns Collars / Rings
- Various Perimeter options
- Gordon’s Contura Perimeter Trim
- Wall angles
- Pockets
- Acoustic Pads / Sound Fleece
- Backer Panels
System Integration
- Airslots / Security Airslots
- Lighting / Security Lighting
- Sprinklers
- Penetrations for electrical devices
Green By Design
- Products contribute to LEED® certification
- In-House Finishes
- Biodegradable pre-treatment and powder coating (no phosphates)
- No hazardous waste
- No VOC’s
- No Heavy Metals
- Reference our sustainability page for more information.
Finish Options
AAMA 2604 Powder Coating Finishes Download PDF
AAMA 2605 Powder Coating Finishes Download PDF
Therapeutic Powder Coat Finishes Download PDF
Wood Look Finishes
Motif Finishes
Antimicrobial Finishes
Perforation Options
Standard Shape Offerings
Standard Pattern Offerings
Custom shapes and patterns available to suit your design requirements. Please call or email us to coordinate shape and pattern possibilities!
