Brake-formed beam baffle cassette soffit

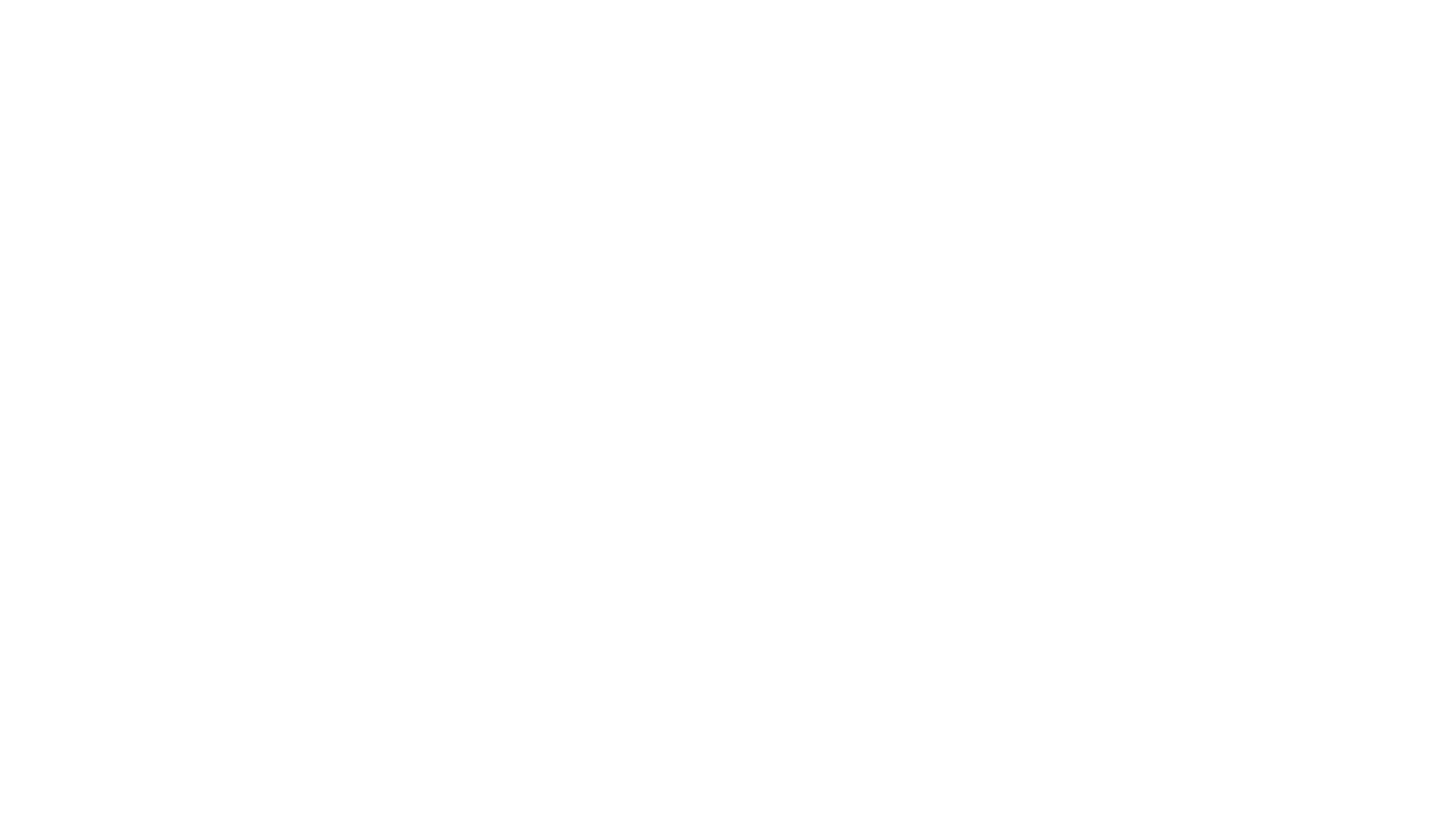

The patented WinLok™ accessible Beam Baffle Cassettes offer 100% downward accessibility. WinLok Beam Baffle Cassettes are made of brake-formed Aluminum, creating a plenum mask that transforms the space while leaving an open plenum for HVAC, lighting, and fire protection. Baffle profiles can be perforated for sound absorption or non-perforated for acoustically reflective vertical surfaces. No other manufacturer of baffles provides a range of widths and depths like Gordon. WinLok Beam Baffle Cassettes are easily removable for plenum access with the special access tool and are offered in a variety of colors and finishes for design flexibility.

Features & Benefits


  • Materials:
    • Standard 0.040” thick aluminum
    • Custom thickness available
  • Beam Baffle Widths:
    • 1” up-to 4” (manufactured in ½” increments)
  • Beam Baffle Heights:
    • 4” to 20” high for 1-1/2” – 4” wide beams
    • 4” to 5” high for 1” wide beams
  • Beam Baffle Length:
    • Standard 8’-0” length
  • Surface:
    • Perforated or Non-Perforated
  • Cassette Sizes:
    • Standard 2′-6″ x 8′
    • Custom up to 4′ x 8′

Perforation Pattern

Finish Options

AAMA 2605 Powder Coating Finishes Download PDF

Wood Look Finishes

Green By Design

  • Products contribute to LEED® certification
  • In-House Finishes
    • Biodegradable pre-treatment and powder coating (no phosphates)
    • No hazardous waste
    • No VOC’s
    • No Heavy Metals
    • Reference our sustainability page for more information.

Product Data

WinLok Beam Baffle Cassettes
WinLok Beam Baffle Cassettes Specifications
WinLok Beam Baffle Cassettes Installation Instructions
Cleaning & Maintenance
WinLok Exterior Beam Baffle Cassettes
