WinLok™ Beam Baffle Cassettes
Brake-formed beam baffle cassette ceiling

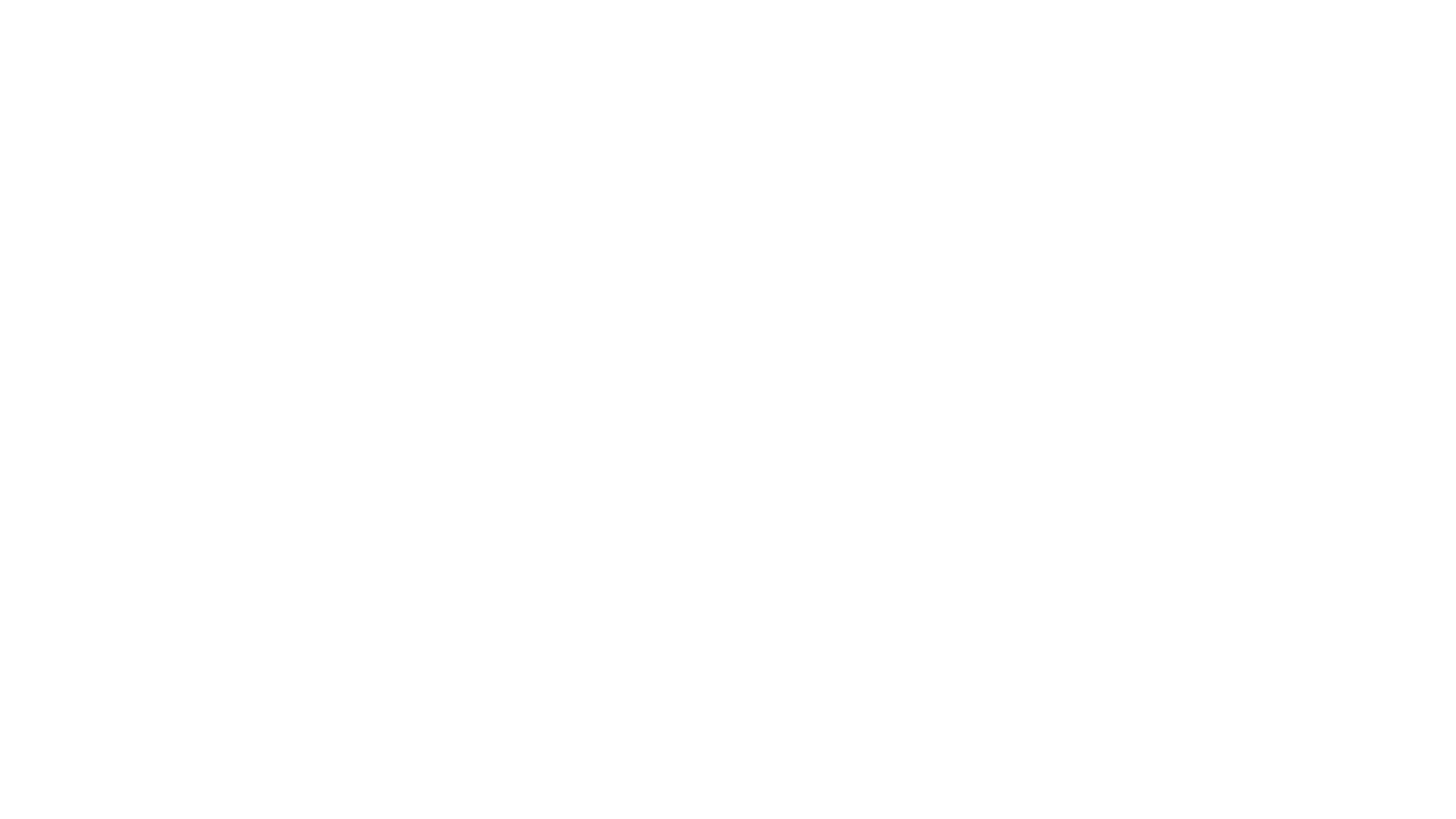

The patented WinLok™ accessible Beam Baffle Cassettes offer 100% downward accessibility. WinLok Beam Baffle Cassettes are made of brake-formed Aluminum, creating a plenum mask that transforms the space while leaving an open plenum for HVAC, lighting, and fire protection. Baffle profiles can be perforated for sound absorption or non-perforated for acoustically reflective vertical surfaces. No other manufacturer of baffles provides a range of widths and depths like Gordon. WinLok Beam Baffle Cassettes are easily removable for plenum access with the special access tool and are offered in a variety of colors and finishes for design flexibility.
WinLokTM Patent No. US 10,113,317 B1
Features & Benefits
Options
- Materials:
- Standard 0.040” thick aluminum
- Custom thickness available
- Beam Baffle Widths:
- 1” up-to 4” (manufactured in ½” increments)
- Beam Baffle Heights:
- 4” to 20” high for 1-1/2” – 4” wide beams
- 4” to 5” high for 1” wide beams
- Beam Baffle Length:
- Standard 8’-0” length
- Surface:
- Perforated or Non-Perforated
- Cassette Sizes:
- Standard 2′-6″ x 8′
- Custom up to 4′ x 8′
Perforation Pattern
Finish Options
AAMA 2604 Powder Coating Finishes Download PDF
AAMA 2605 Powder Coating Finishes Download PDF
Wood Look Finishes
Green By Design
- Products contribute to LEED® certification
- In-House Finishes
- Biodegradable pre-treatment and powder coating (no phosphates)
- No hazardous waste
- No VOC’s
- No Heavy Metals
- Reference our sustainability page for more information.
