WP MR Reveal Joint Wall System

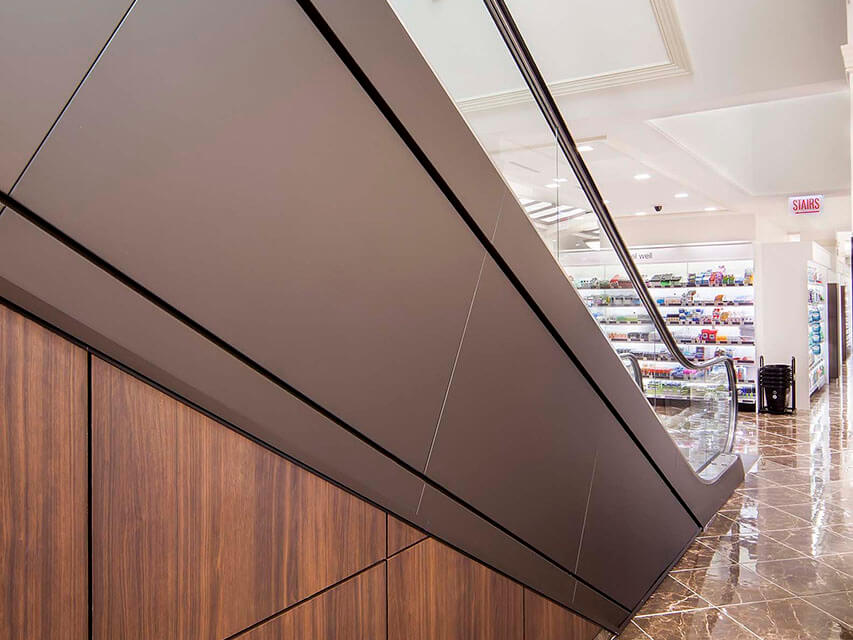

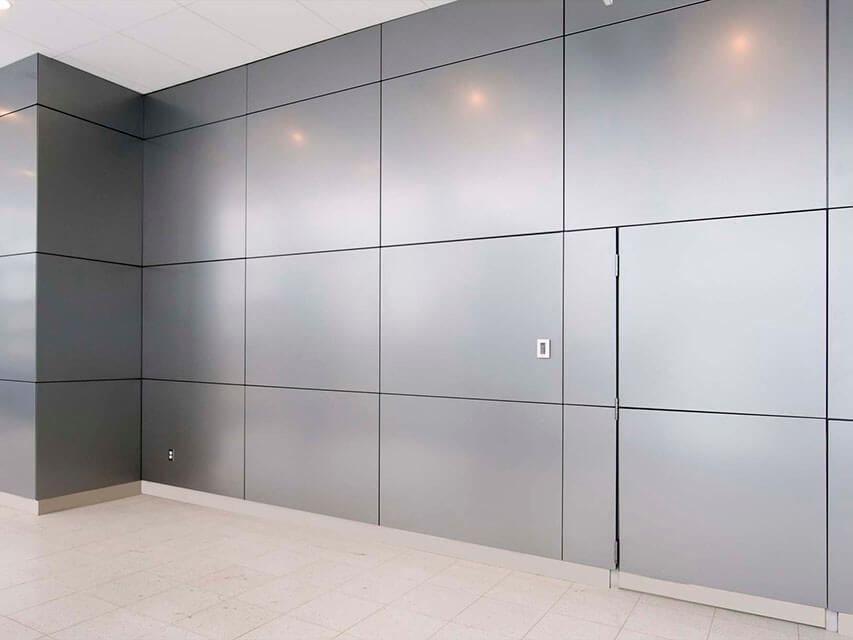

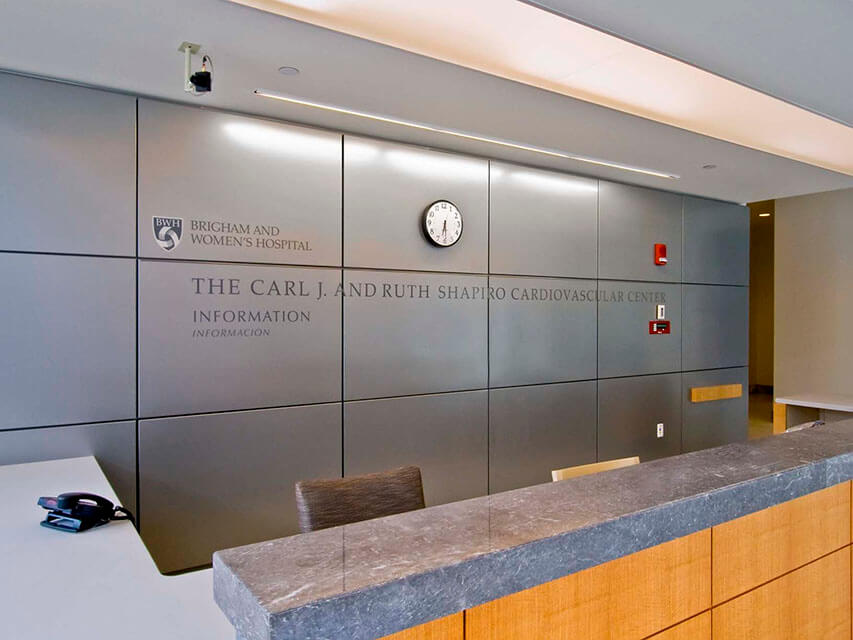

Wall cladding with reveal joints can be achieved using wall cleat mounting system. Trim-plates or reveal inserts are provided for reveals between panels. Trim plates or reveal inserts can either be fabricated to match the finish of wall panels or in a contrasting color to create a unique look. Additionally, lighting strips may be incorporated within the reveals to create attractive illuminated walls.

Gordon is an award winning manufacturer and provider of solutions for specialty interior finishes. Gordon Wall Systems are designed and engineered for easy installation, high durability, and fabricated to your specific design requirements.

Features & Benefits

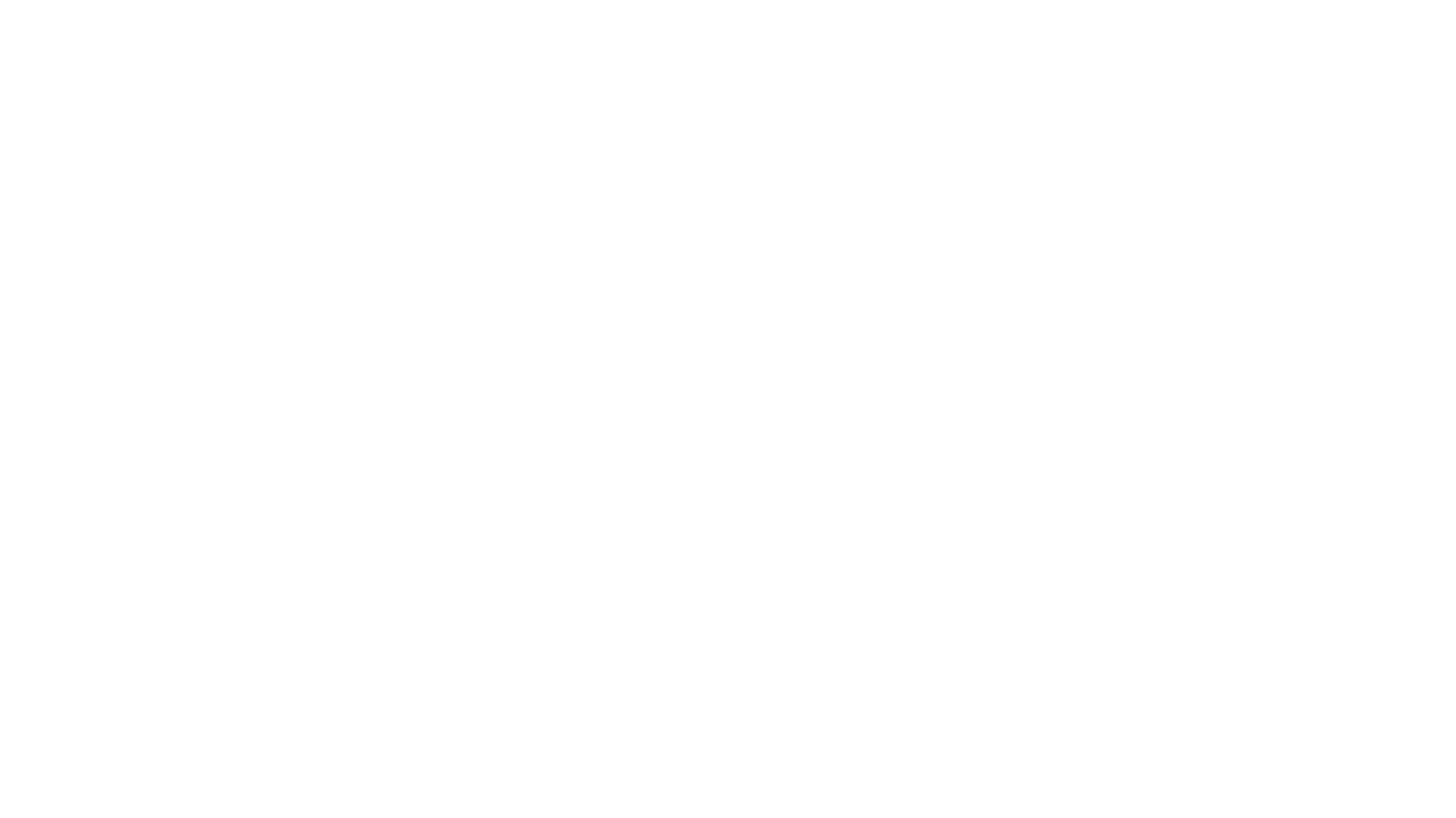

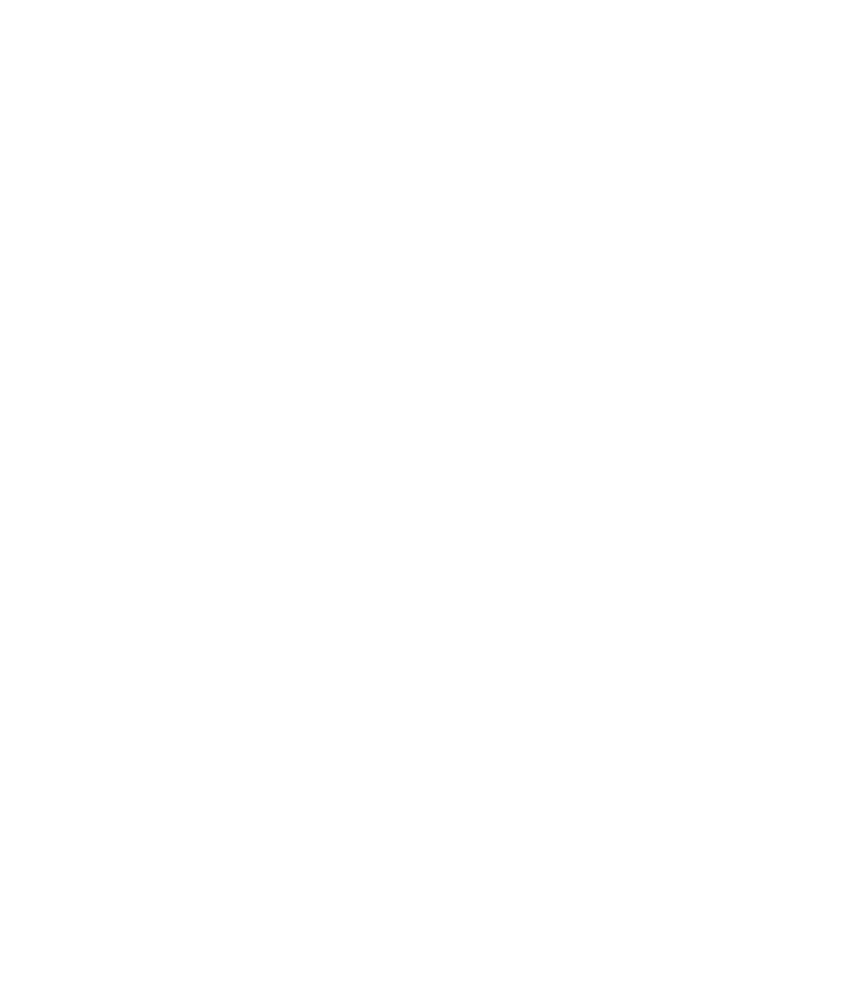

Top Reveal Section

Mid Reveal Section

Wall Cleat Mounting System

Materials

Gordon offers many different metal options to meet your design criteria.

  • ALUMINUM – .063″ – .188″ thickness
    • Smooth
    • Textured / Embossed
    • Mechanical Finishes
  • GALVANIZED STEEL – 14-24 gauge
  • STAINLESS STEEL – 14-24 gauge
    • Brushed #4
    • Mirror Polished #8
    • Textured / Embossed
    • Mechanical Finishes

Fabrication

  • DESIGN APPLICATIONS
    • Non-perforated
    • Perforated for acoustics or decorative design
    • Flat
    • Curved
    • Reveal
  • PANEL SIZES
    • Up to 5′ x 12′

Can be reinforced with Corrugated metal, MDF, or Honeycomb backer panels for increased rigidity

Green By Design

  • Products contribute to LEED® certification
  • In-House Finishes
    • Biodegradable pre-treatment powder coat (no phosphates)
    • No hazardous waste
    • No VOC’s
    • No Heavy Metals
    • Reference our sustainability page for more information.

Finish Options

AAMA 2604 Powder Coat Finishes Download PDF

AAMA 2605 Powder Coat Finishes Download PDF

Therapeutic Powder Coat Finishes Download PDF

Wood Look Finishes

Motif Finishes

Mechanical & Enhanced Finishes

Antimicrobial Finishes

Perforation Options

Standard Shape Offerings
Standard Pattern Offerings
Custom shapes and patterns available to suit your design requirements. Please call or email us to coordinate shape and pattern possibilities!

Product Data

WP MR Consolidated Set

Wall Systems Specifications

Wall Systems Brochure

Cleaning & Maintenance
