Grid Based Ceiling System with Snap-in Panels

Gordon Lockdown® Metal Snap-In Panel Security Ceiling is a tamper evident, grid based ceiling system utilized in supervised security environments within psychiatric facilities. Lockdown 2'x2' and 2'x4' panels can integrate acoustical performance and Gordon lighting, access doors / panels, and mechanical systems. Our Durable, Antimicrobial, AAMA certified powder coated finishes offer infection control, occupant safety and maintainability while the Therapeutic color offerings help create a warm, comfortable space for patients, visitors and healthcare workers. Lockdown ® is one of three Gordon ceilings that have been selected for its security, safety, and accessibility by the New York State Office of Mental Health for their patient standards guide.

Features & Benefits

DESIGN ELEMENTS

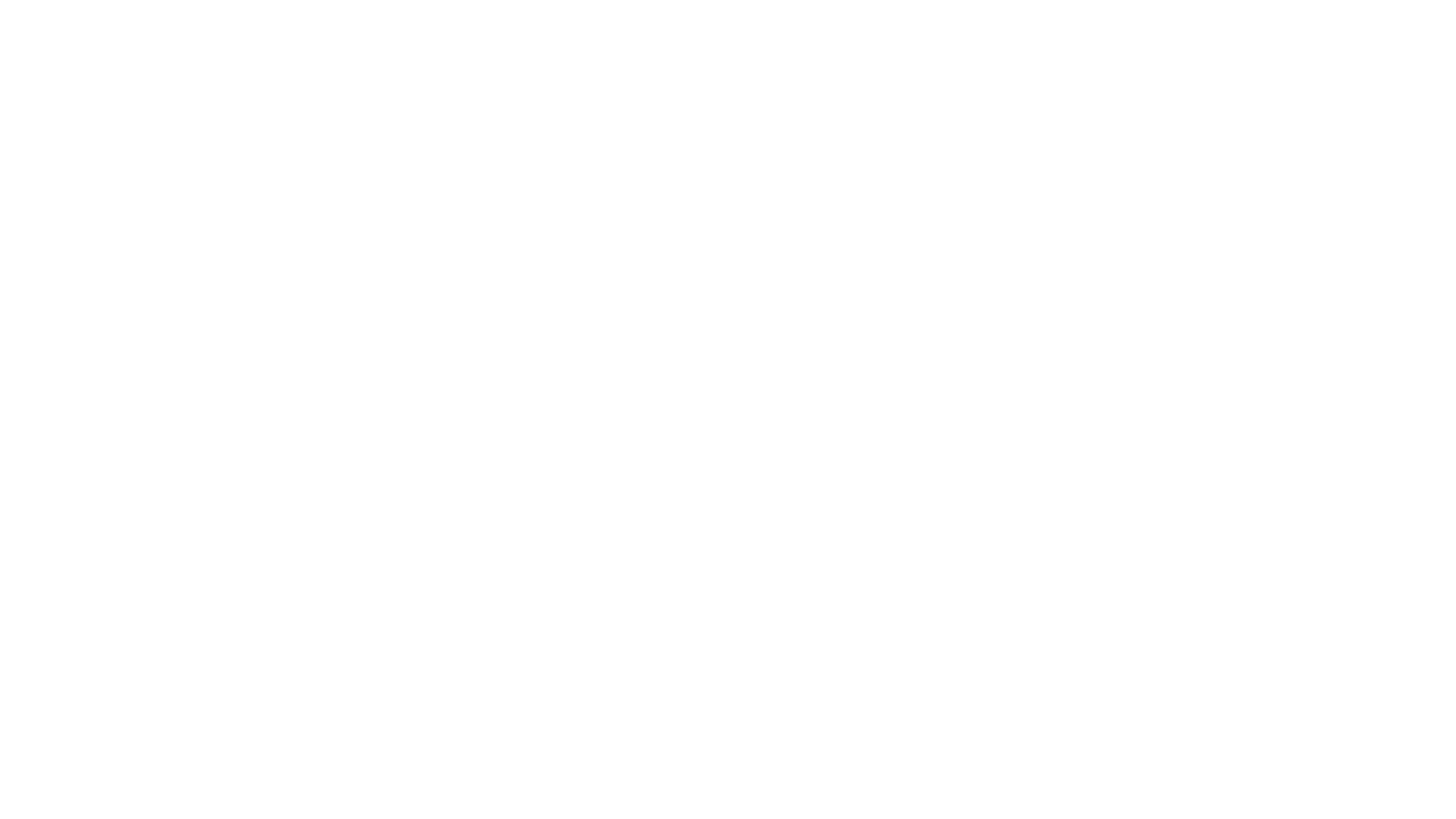

Heavy gauge steel or aluminum security ceiling panels lock into the security ceiling grid, restricting system breech and concealment of contraband

  • Perforated security ceiling panels with acoustical media provide noise control
  • Factory finished components
  • Quick and easy installation compared to drywall systems:
    • One trade installation
    • Shorter installation time helps shorten project schedule

PANEL SIZE OPTIONS

  • 24″ x 24″ or 24″ x 48″
  • Metric sizes available

PANEL MATERIAL OPTIONS

  • 18 gauge galvanized steel
  • Optional .040″ aluminum

SUSPENSION SYSTEM

  • Square bulb .020″ Heavy Duty Steel Grid System
  • Standard security white finish

FASTENING

  • Exposed Torx® Tamper Proof security screws

ACOUSTICAL MEDIA

  • Class A rated fiberglass sound absorbing pads, wrapped in fire retardant black polyethylene, in densities and thickness to meet project requirements

ACOUSTICAL RATINGS

  • Noise Reduction Coefficient (NRC): 0.80-1.00 (varies by perforation pattern and acoustical media)
  • Sound Transmission Class (STC): 40-44 with available metal and composite backers

Lockdown CEILING ACCESSORIES

LOCKLITE SECURITY CEILING LIGHTS
LockLite Security Ceiling Light fixtures are designed to integrate with Lockdown security ceiling systems. Lockdown LED light fixtures for recessed applications are available 24” wide with lengths of 24” and 48”.
SECURITY ACCESS PANELS
Security Ceiling Access Panels are designed to provide efficient and secure access to critical areas for infrequent access.
SECURITY ACCESS DOORS
Security Ceiling Access Doors are designed to provide efficient and secure service access to critical areas for frequent access.

SECURITY AIR DISTRIBUTION – DIRECTIONAL DIFFUSER & RETURN VENTS
Lockdown Air Distribution provides directional air intake and return ventilation for Security Ceilings.

SPACER GRID
Spacer Grid are metallic-coated-steel grid units that provide an air cushion between security ceiling panels and sound-absorptive pads that act to improve sound absorption.

  • 24″ x 24″ wire panels
  • 0.5 lbs / piece

BACKER PANELS
Backer Panels are formed non-perforated panels that lay-in to the backside of Lockdown® perforated security panels to aid in improving STC between rooms or multi-floor facilities

Finish Options

AAMA 2604 Powder Coat Finishes Download PDF

AAMA 2605 Powder Coat Finishes Download PDF

Therapeutic Powder Coat Finishes Download PDF

Antimicrobial Finishes

Perforation

MARKET APPLICATIONS

Medical + Psychiatric* Applications:

  • Adult + juvenile wards
  • Patient rooms
  • Common areas

* Lockdown® is also marketed as Integrum Metal Snap-In Panel Security Ceiling in psychiatric applications and is currently under evaluation by the New York Office of Mental Health for their Patient Safety Standards, Materials and Systems Guidelines.

Commercial Market:

  • Airport detainment areas
  • Schools + universities
  • Casino money counting rooms + detention areas
  • Military
  • Transportation terminals

PRODUCT DATA

Lockdown Consolidated Set

Lockdown Brochure

Security Solutions Brochure

Lockdown Air Distribution Brochure

LockLite Surface Mount Lighting Brochure

LockLite Recessed Lighting Brochure

Lockdown Specifications

Lockdown Installation Instructions

Cleaning & Maintenance
