High Security Plank Ceilings

Gordon Cel•Line® Metal Plank Security Ceiling is tamper proof and designed for high security environments. Typically installed in unsupervised areas or corridors of psychiatric facilities, Cel•Line® can be non-perforated or perforated for improved acoustical performance, substantially reducing overall noise levels in the facility. Cel•Line® can also integrate Gordon Cel•Lite security lights, Gordon access doors or access panels and Gordon security air distribution. Our Durable, Antimicrobial, AAMA certified powder coated finishes offer infection control, occupant safety and maintainability while the Therapeutic color offerings help create a warm, comfortable space for patients, visitors and healthcare workers. Cel•Line® is one of three Gordon ceilings that have been selected for its security, safety, and accessibility by the New York State Office of Mental Health for their patient standards guide.

Features & Benefits

DESIGN ELEMENTS

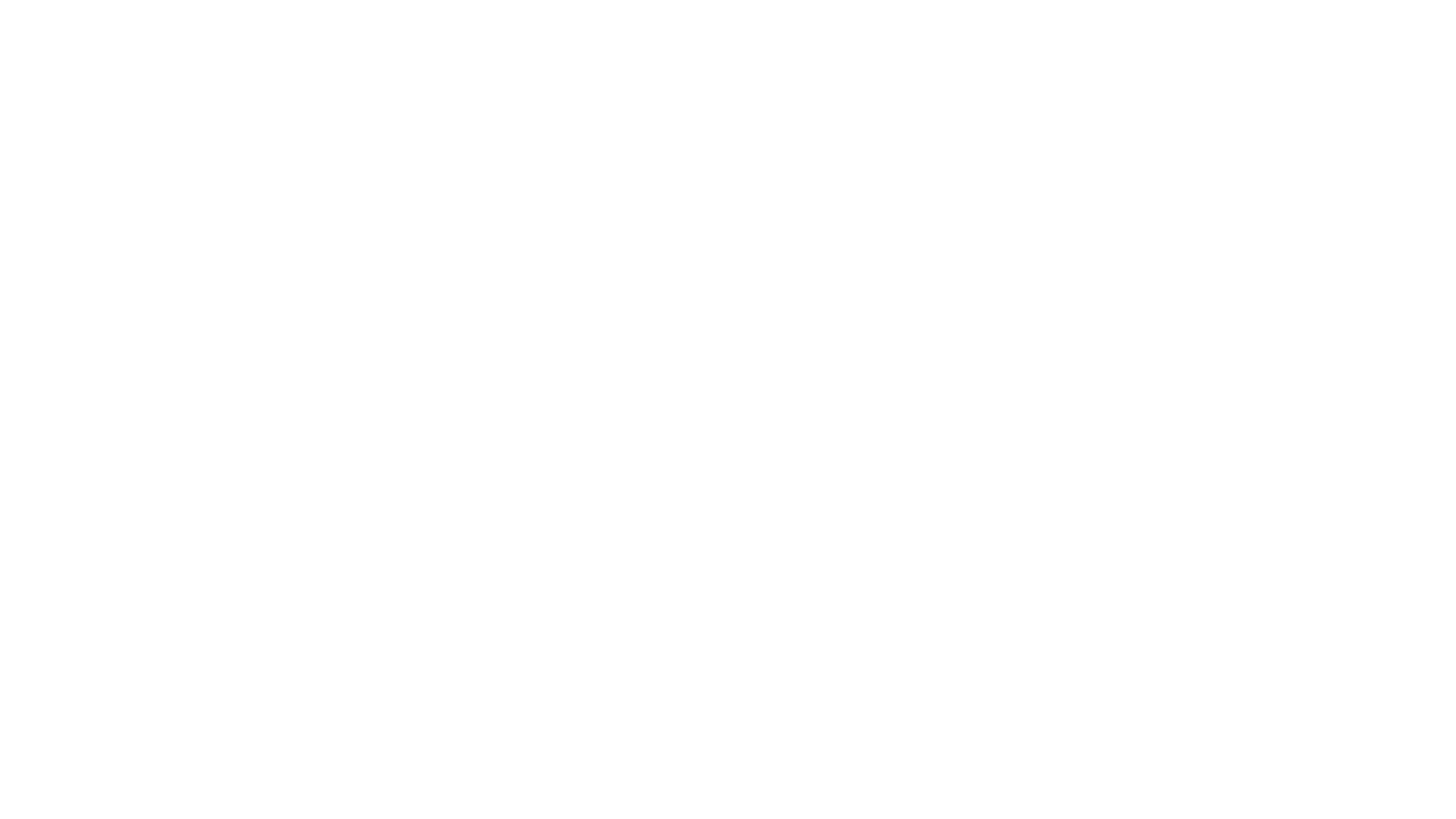

  • Heavy gauge steel or aluminum planks with matching angle and tee suspension systems for unsupervised, high security environments, areas. Perforated planks with acoustical media provide noise control:
    • Cells
    • Holding Areas
    • Showers / Toilets
    • Visitation Areas
    • Dayrooms
  • Shiplap design prohibiting passage of contraband to the plenum
  • Factory finished components
  • Heavy duty structural performance
  • Green Building Compliant and IAQ Friendly
  • Specialized systems available for use in:
    • U.S. Marshall Service Facilities (USMS)
    • State of New York Department of Correctional Service Facilities (OGS)
    • City of New York Department of Corrections Facilities
    • City of New York Department of Corrections Facilities

PANEL SIZE OPTIONS

  • 12”, 18”, or 24” wide, in lengths up to 12’ (10′ for 12 ga)
  • Metric sizes available

PANEL MATERIAL OPTIONS

  • Materials
    • Galvanized Steel – 12 to 18 ga
    • Aluminum – .125″
    • Stainless Steel – 14 to 18 ga, #4 finish
  • Perforated (acoustical) or unperforated panels available
  • High durability security white powder coat finish
  • Custom colors available by request

FASTENING

  • Exposed Torx Plus® Tamper Proof security screws

ACOUSTICAL MEDIA

  • Class A rated fiberglass sound absorbing pads, wrapped in fire retardent black polyethylene, in densities & thickness to meet project requirements
  • Non-woven acoustical fabric

ACOUSTICAL RATINGS

  • Noise Reduction Coefficient (NRC): 0.80-1.00 (varies by perforation pattern and acoustical media)
  • Sound Transmission Class (STC): 40-44 with available metal and composite backers

Cel-Line CEILING ACCESSORIES

Cel•Lite SECURITY CEILING LIGHTS

Cel•Lite Light fixtures are designed to integrate with Cel•Line security ceiling systems. Cel•Lite LED light fixtures are available for both recessed and surfaced mounted applications. Fixtures are available 12” wide with lengths of 24” and 48”.

SECURITY ACCESS PANELS
Security Ceiling Access Panels are designed to provide efficient and secure access to critical areas for infrequent access.

SECURITY ACCESS DOORS
Security Ceiling Access Doors are designed to provide efficient and secure service access to critical areas for frequent access.

SECURITY AIR DISTRIBUTION – DIRECTIONAL DIFFUSER & RETURN VENTS
Cel•Line Air Distribution provides directional air intake and return ventilation for Security Ceilings.
SPACER GRID
Spacer Grid are metallic-coated-steel grid units that provide an air cushion between security ceiling panels and sound-absorptive pads that act to improve sound absorption.

  • 24″ x 24″ wire panels
  • 0.5 lbs / piece
BACKER PANELS
Backer Panels are formed non-perforated panels that lay-in to the backside of Cel•Line® perforated security panels to aid in improving STC between rooms or multi-floor facilities

Finish Options

AAMA 2604 Powder Coat Finishes Download PDF

AAMA 2605 Powder Coat Finishes Download PDF

Therapeutic Powder Coat Finishes Download PDF

Wood Look Finishes

Antimicrobial Finishes

Perforation

MARKET APPLICATIONS

Medical + Psychiatric* Applications:

  • Adult + juvenile wards
  • Patient rooms
  • Common areas
  • Corridors

* Cel•Line® Metal Plank Security Ceiling is currently under evaluation by the New York Office of Mental Health for their Patient Safety Standards, Materials and Systems Guidelines.

PRODUCT DATA

Cel•Line with 100% Concealed Fasteners

Cel•Line with 75% Concealed Fasteners

Cel•Line with Exposed Fasteners

Cel•Line Brochure

Security Solutions Brochure

Cel•Line Air Distribution Brochure

Cel•Lite Surface Mount Lighting Brochure

Cel•Lite Recessed Lighting Brochure

Cel•Line Specifications

Cel•Line Installation Instructions

Cleaning & Maintenance
