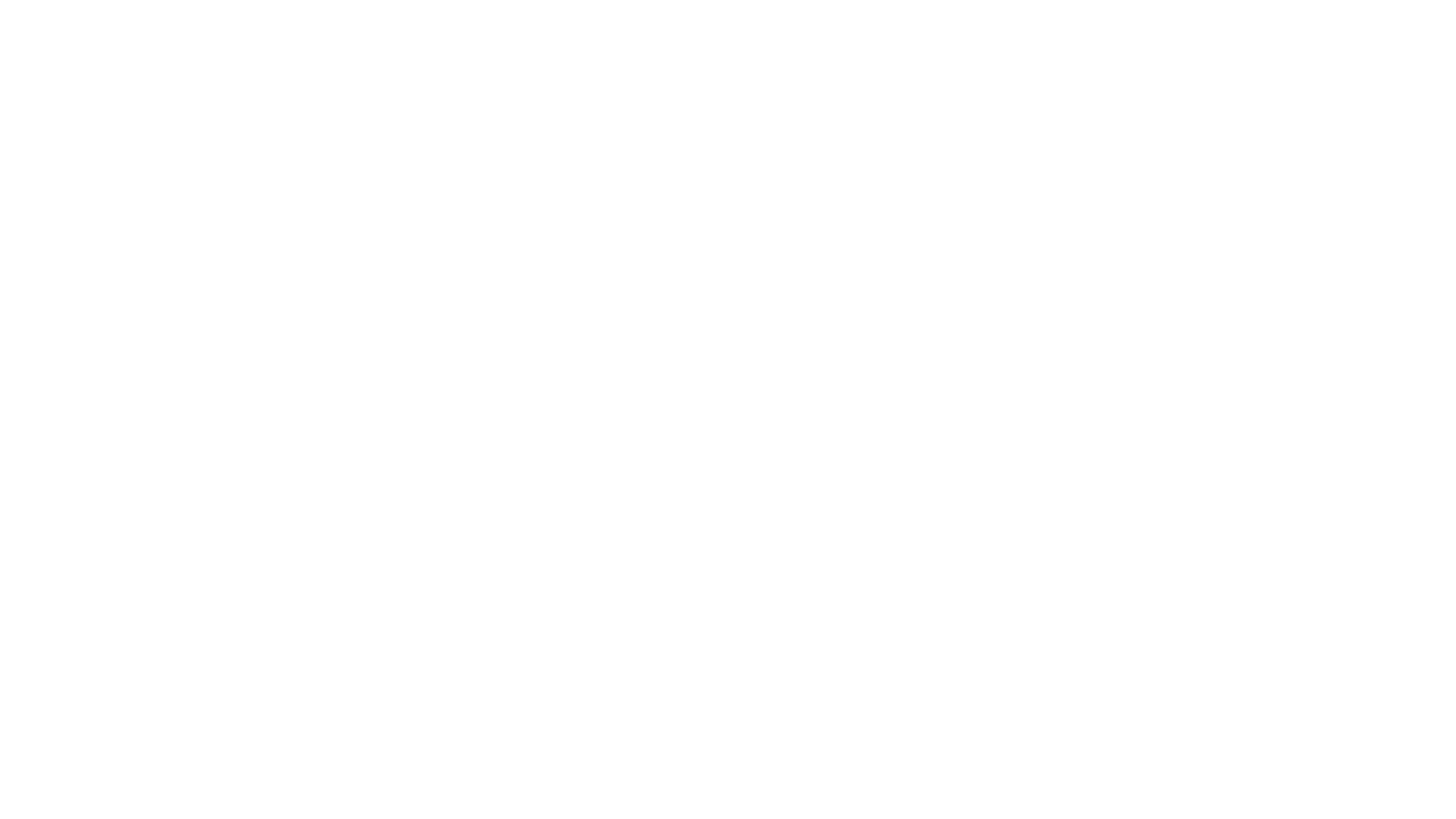

MEZZO™ Metal Acoustical Ceiling Baffles provide a unique bullnose design and is unlike any other metal baffle designs currently available on the market. MEZZO Baffles are fully factory assembled, modular units that integrate flat, perforated vertical panels with extruded aluminum bullnose trims on the horizontal surface. MEZZO Baffles and are ideally suited for use in transportation, convention, and other commercial environments where reverberant noise is a problem.

Features & Benefits

Finish Options

AAMA 2604 Powder Coat Finishes Download PDF

AAMA 2605 Powder Coat Finishes Download PDF

Therapeutic Powder Coat Finishes Download PDF

Antimicrobial Finishes

Ceiling Configuration Ideas & Inspiration

  • Perforation Pattern: R332-316SG23
  • Baffle Size:
    • Thickness – 2”
    • Depth – 12”
    • Length – 8’
    • Contact factory for custom depths and lengths
  • Rod suspended
  • Sound Absorption (ASTM C423) : NRC = 0.95
Reflected Plan View
Section View

Product Data

Brakeformed Beam Baffle – Profile Details

Brakeformed Beam Baffle – Suspension and Spacing Details

Brakeformed Beam Baffle – End Cap Isometric Assembly

Brakeformed Beam Baffle – End Plug Isometric Assembly

Brakeformed Beam Baffle – Splice Plug Isometric Assembly

Brakeformed Beam Baffle – Swivel Clip Isometric Assembly

Brakeformed Beam Baffle – Aligned Configuration

Brakeformed Beam Baffle – Staggered Configuration

Brakeformed Beam Baffle – Serpentine Configuration

Brakeformed Beam Baffle – Rake Configuration

Cel•Line® Specifications

Brakeformed Beam Baffle Brochure

Cleaning & Maintenance
