Gordon WP RB MILLENNIUM® Batten Wall System

Create a focal point and elevate your space using Gordon’s MILLENNIUM® batten wall system. WP RB Batten wall system includes reveal battens/trims between panels in a pattern or design. MILLENNIUM® panels add character to the space. Back lighting can be incorporated behind the panels to create illuminated walls. Insulation pads may be added for acoustics. Panels and trims are available in a wide variety of standard colors or custom colors to meet your design requirements.

Features & Benefits

Reveal Batten Trim Design

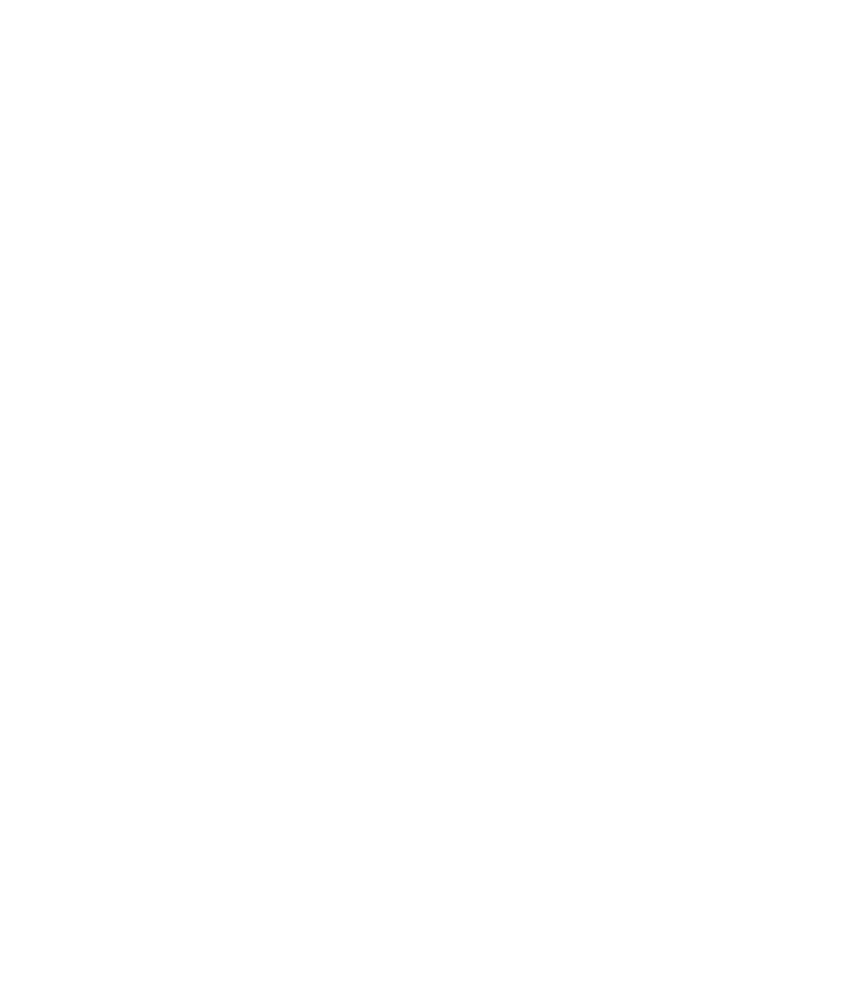

J Trim Top Reveal Detail

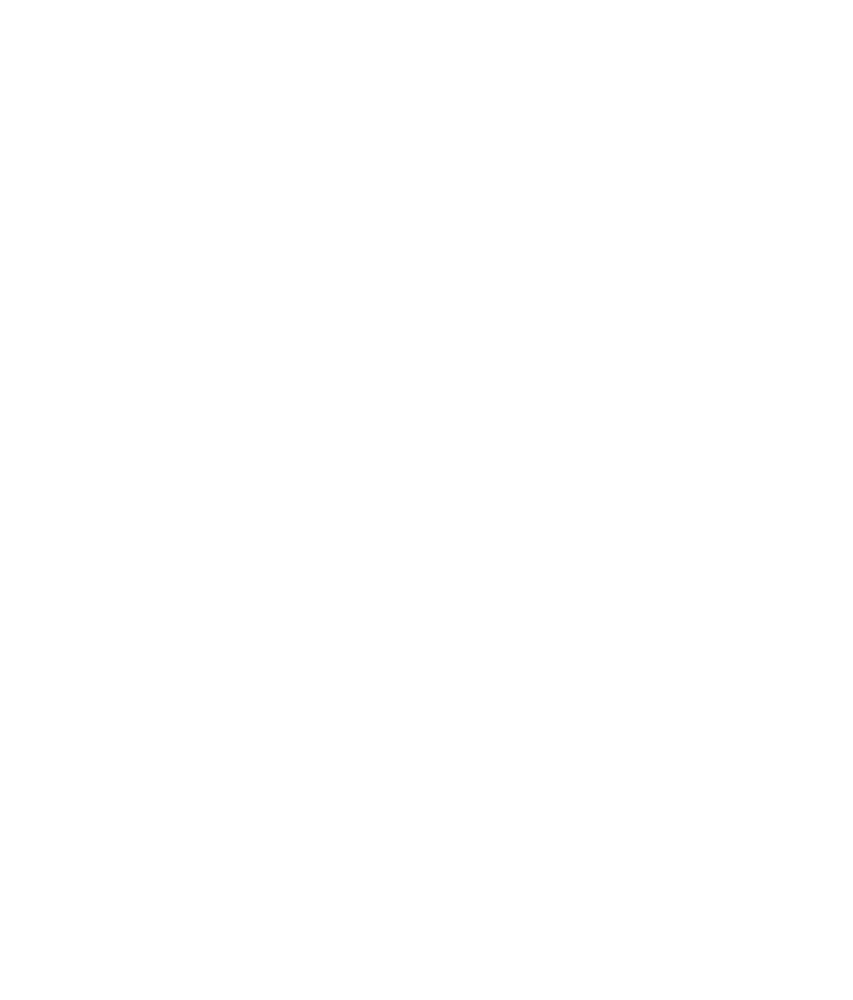

J Trim Outside Corner Detail

Mid Reveal Options

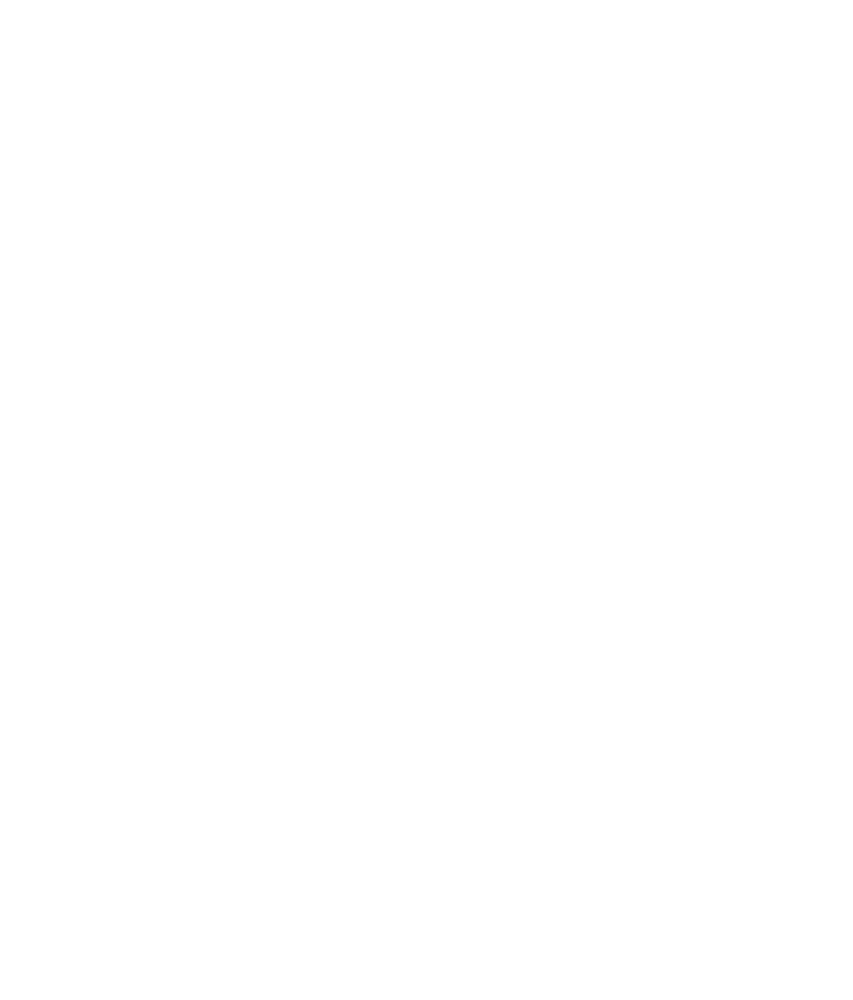

J-Trim Reveal

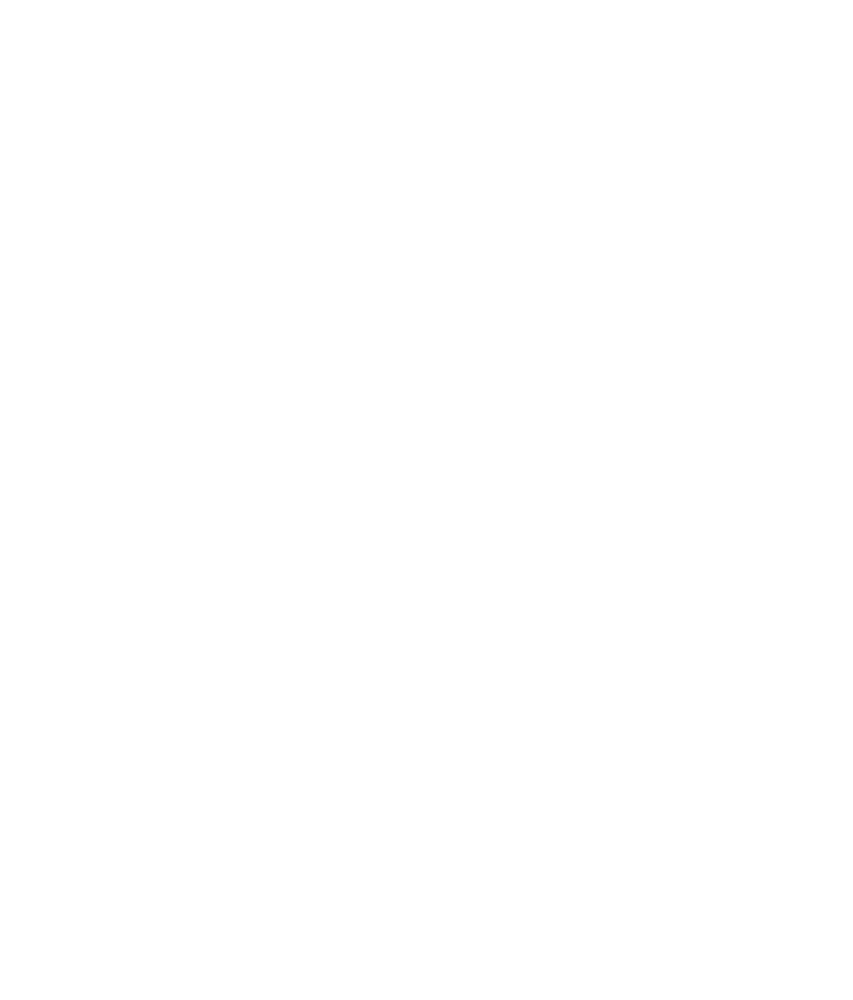

1/4″ Reveal Trim
Reveal R-Trim

Materials

  • ALUMINUM
    • .063″ MILLENNIUM®
    • Approximately 40% open area

Fabrication

  • DESIGN APPLICATIONS
    • Perforated for acoustics or decorative design
    • Flat
    • Curved
    • Reveal
  • PANEL SIZES
    • Up to 5′ x 12′

Green By Design

  • Products contribute to LEED® certification
  • In-House Finishes

Finish Options

AAMA 2604 Powder Coat Finishes

AAMA 2605 Powder Coat Finishes

Therapeutic Powder Coat Finishes

Antimicrobial Finishes

Perforation Options

MILLENNIUM® Panel Surface

Product Data

J Trim Reveal

Reveal Snap Trims Detail

Reveal R Trim Detail

1/4″ reveal Trim Detail

X Trim Outside Corner Detail

MILLENNIUM® Walls Specifications

MILLENNIUM® Brochure

Cleaning & Maintenance
