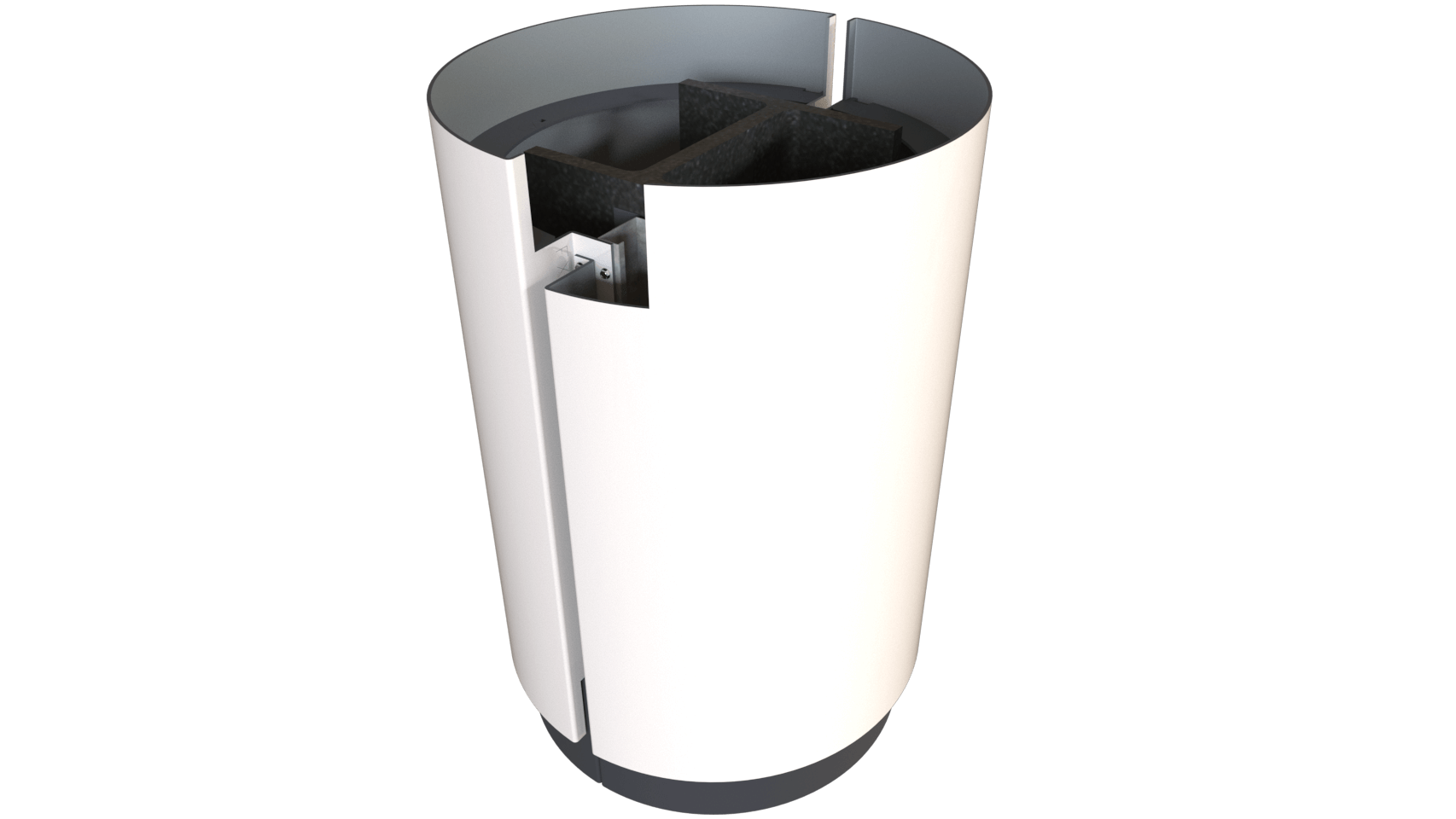

Reveal Joint Column Covers
Features & Benefits

Materials
Gordon offers many different metal options to meet your design criteria.
- Aluminum – .090″ or .125″ thickness
- Galvanized Steel – from 18 gauge up to 14 gauge
- Mechanical & Textured Stainless Steel – from 18 gauge up to 14 gauge
- #4 Directional Brushed
- #6 Directional Brushed
- #8 Mirror
- Random Orbital
- Random Anti-Graffiti
- Textured
Contact Gordon for other material types and thicknesses.
Design
- Quarter Round
- Half Round
- Full Round
- Oblong
- Oval (Elliptical)
- Square / Rectangular
- Faceted
- Conical
- Custom
- 14″ Aluminum
- 18″ Stainless Steel
- Before Stacking: 12′-0
- Horizontal
- Vertical
- Combination of Reveals
- Access Doors
- Column Collars / Rings
- Guard Rails / Hand Rails
- Penetrations
- Perforations
- Polycarbonate Light Diffusers
- Sound Deadening Tape
- Speaker Panels
- Studs and Tiebacks
- Top Caps
Finish Options
AAMA 2604 Powder Coat Finishes
AAMA 2605 Powder Coat Finishes
Therapeutic Powder Coat Finishes
Wood Look Finishes
Motif Finishes
Mechanical & Enhanced Finishes
Antimicrobial Finishes
Green By Design
- Products contribute to LEED® certification
- In-House Finishes
- Biodegradable pre-treatment powder coat (no phosphates)
- No hazardous waste
- No VOC’s
- No Heavy Metals
- Reference our sustainable brochure & sustainability page for more information.
Product Data
eConnect Connector Detail Top Section
eConnect Connector Detail Side Section
eConnect Connector Detail Isometric Section
Typical Top Section
Typical Intermediate Stacking Section with Reveal
Typical Base Section
Typical Base Section with Reveal
Caulked Reveal Detail

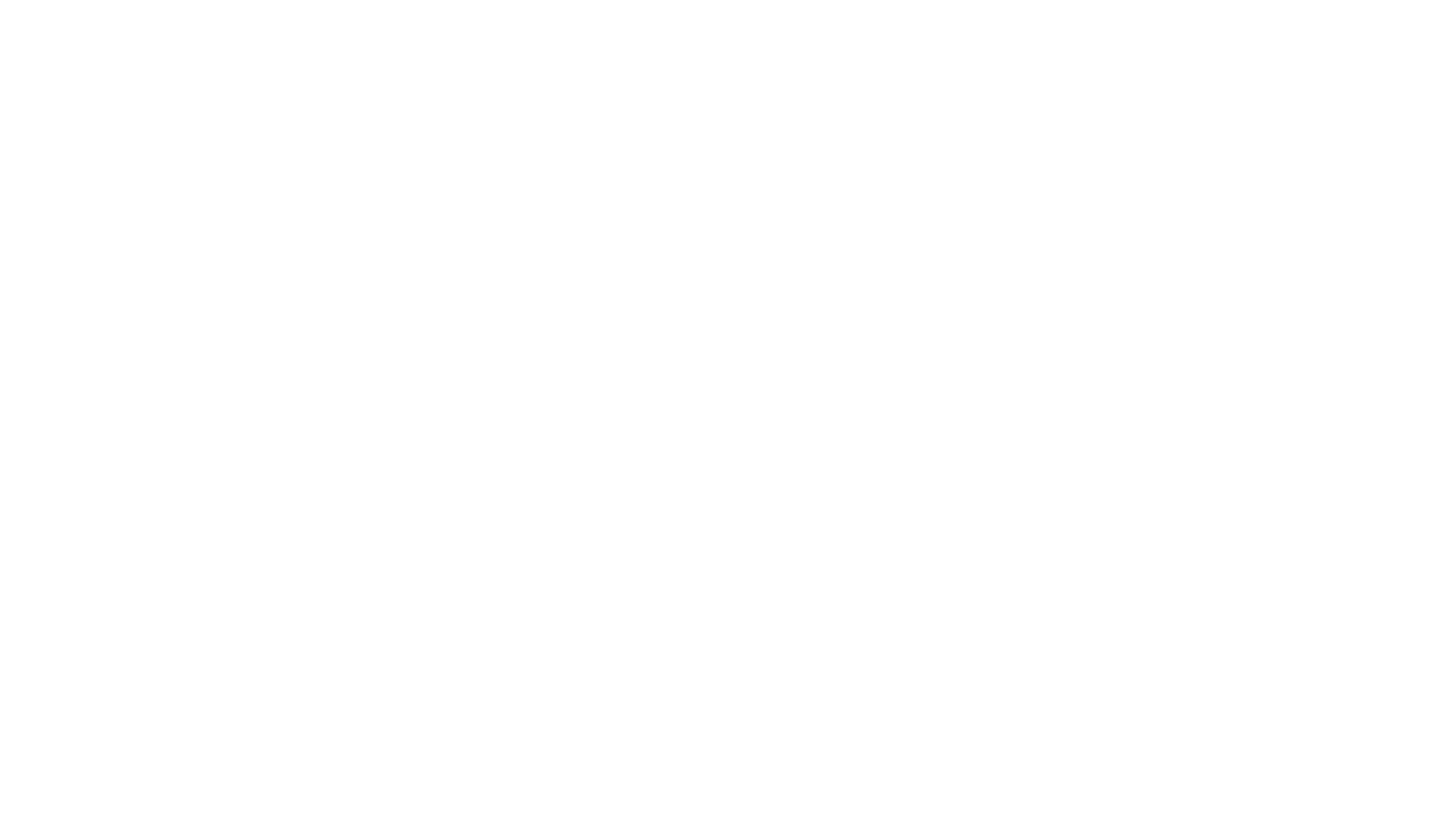

Round Halves Configuration
Round Quadrants Configuration
Oblong Configuration
Elliptical Configuration
Square/Rectangular Configuration
