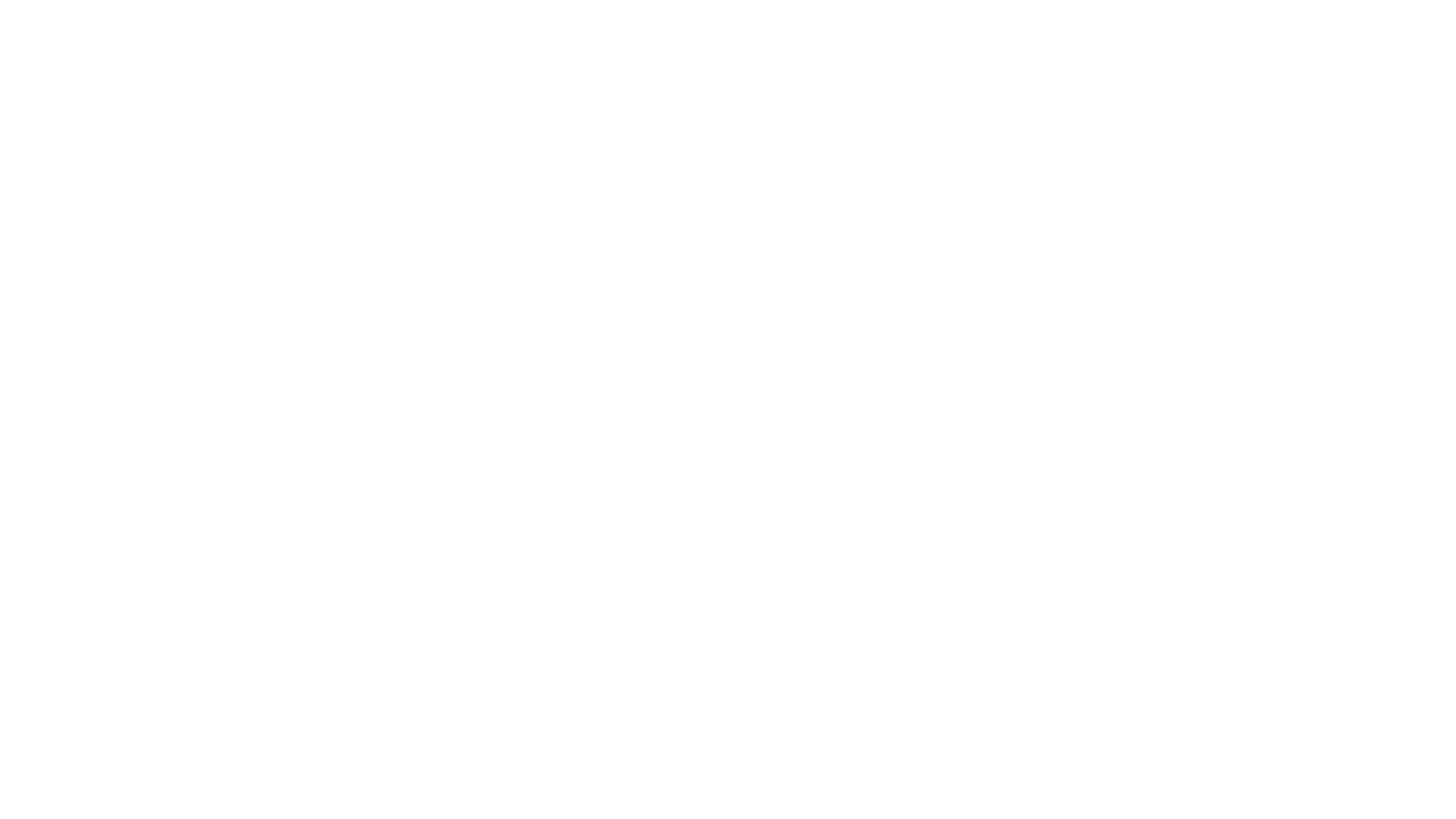

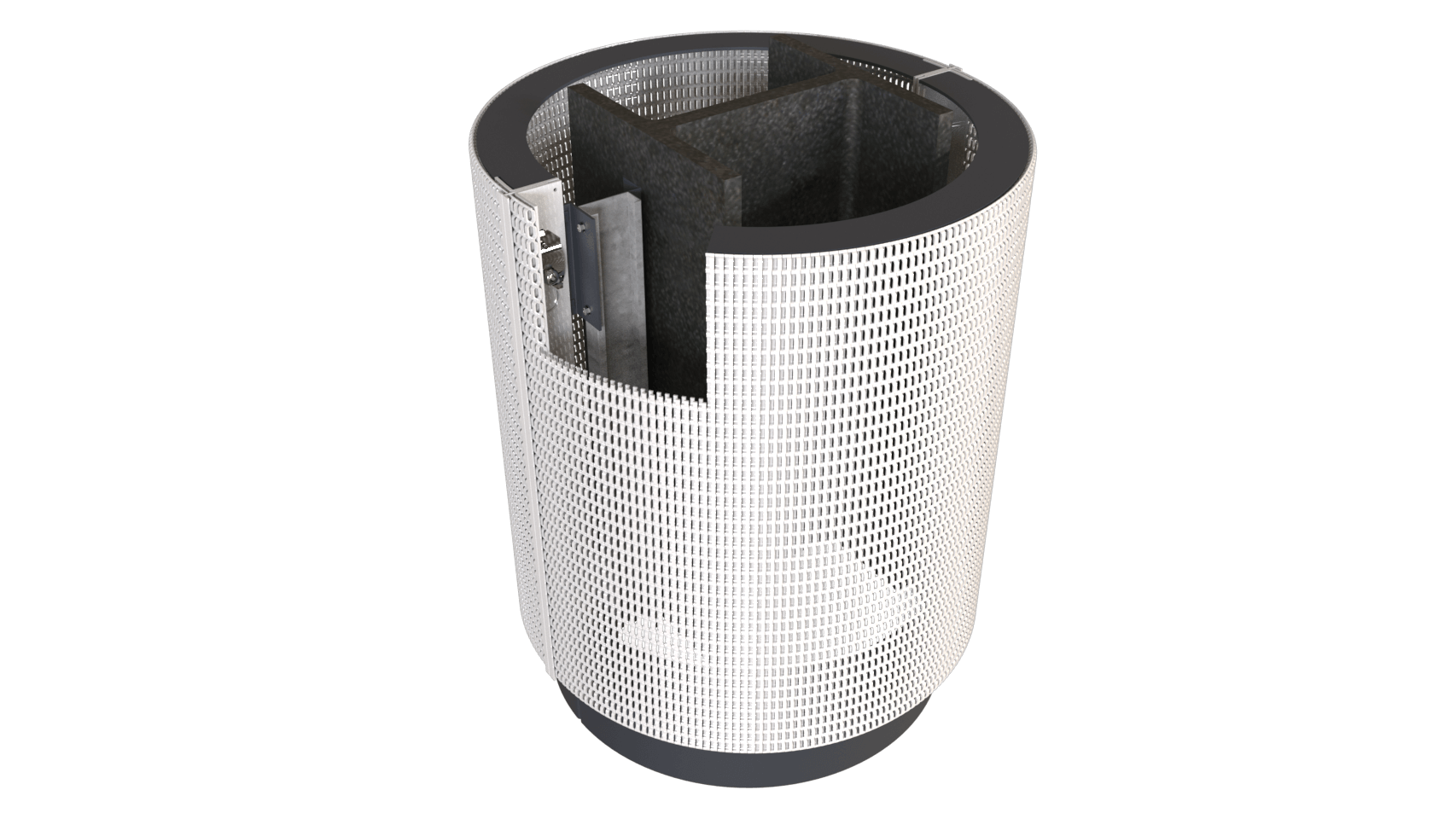

Snap-in metal battens are utilized to create vertical and horizontal reveals. Snap-in battens can be either powder coated to match the column covers skins offering a cohesive look or powder coated in a contrasting color for a unique look.

Gordon is recognized as a premier manufacturer of metal column covers (metal column enclosures, beam wraps, & column surrounds) for the interior and exterior construction specialty market. Gordon metal column covers are competitively priced, easy to install, and fabricated with the highest quality materials, making Gordon the best choice to meet your metal column cover needs.

Features & Benefits

Materials


Gordon offers many different metal options to meet your design criteria.

  • MILLENNIUM ® – .063″ thickness or 18 gauge steel
    • Backlighting available
  • Aluminum – .090″ or .125″ thickness
  • Galvanized Steel – from 18 gauge up to 14 gauge
  • Mechanical & Textured Stainless Steel – from 18 gauge up to 14 gauge
    • #4 Directional Brushed
    • #6 Directional Brushed
    • #8 Mirror
    • Random Orbital
    • Random Anti-Graffiti
    • Textured

Contact Gordon for other material types and thicknesses.
Consider MILLENNIUM® for backlighting applications.

Design

CONFIGURATIONS:

  • Quarter Round
  • Half Round
  • Full Round
  • Oblong
  • Oval (Elliptical)
  • Square / Rectangular
  • Faceted
  • Conical
  • Custom
MINIMUM DIAMETER:

  • 14″ Aluminum
  • 18″ Stainless Steel
MAXIMUM HEIGHT:

  • Before Stacking: 12′-0
REVEALS:

  • Horizontal
  • Vertical
  • Combination of Reveals
ACCESSORIES / OPTIONS:

  • Access Doors
  • Column Collars / Rings
  • Guard Rails / Hand Rails
  • Penetrations
  • Perforations
  • Polycarbonate Light Diffusers
  • Sound Deadening Tape
  • Speaker Panels
  • Studs and Tiebacks
  • Top Caps

Finish Options

AAMA 2604 Powder Coat Finishes Download PDF

AAMA 2605 Powder Coat Finishes Download PDF

Therapeutic Powder Coat Finishes

Wood Look Finishes

Motif Finishes

Mechanical & Enhanced Finishes

Antimicrobial Finishes

Green By Design

  • Products contribute to LEED® certification
  • In-House Finishes

Product Data

Outside Corner Detail

Inside Corner Detail

Standard Snap Trims

1/4″ Spacer Detail

3/8″ Spacer Detail

1/2″ Spacer Detail

5/8″ Spacer Detail

J Trim Reveal

Reveal Snap Trims Detail

MILLENNIUM® Column Cover Trim Extrusion Detail

Reveal R Trim Detail

X Trim Outside Corner Detail

1/4″ reveal Trim Detail

MILLENNIUM® Column Cover Specifications

MILLENNIUM® Brochure

Cleaning & Maintenance
