WinLok™ MH Accessible Security Ceiling and Soffit Systems

Concealed Suspension with 100% Downward Accessible Panels

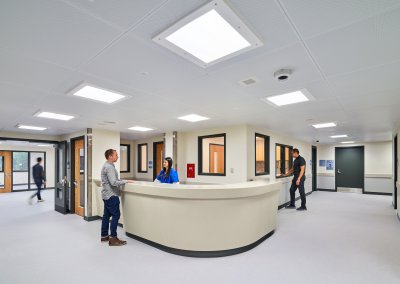

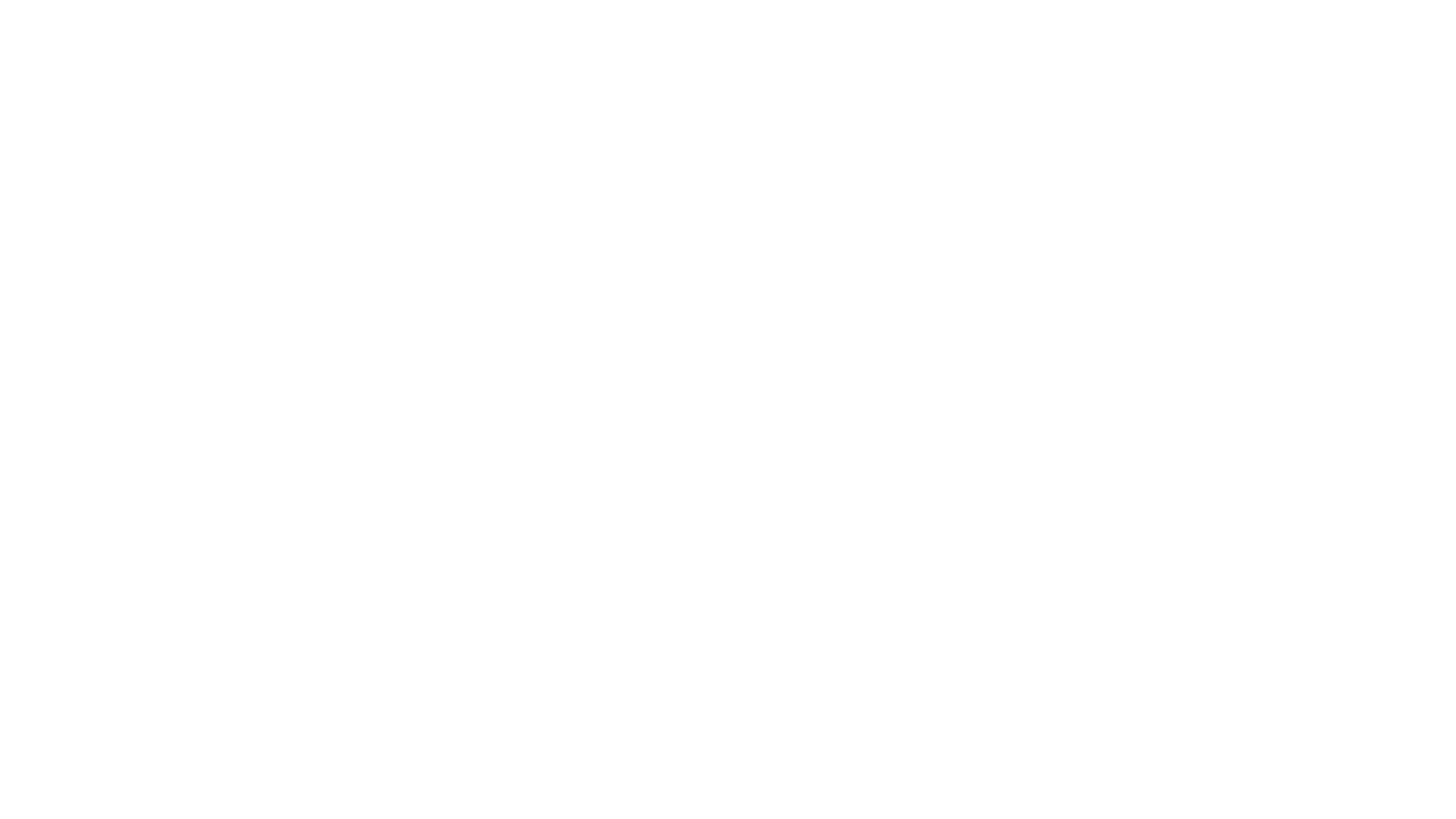

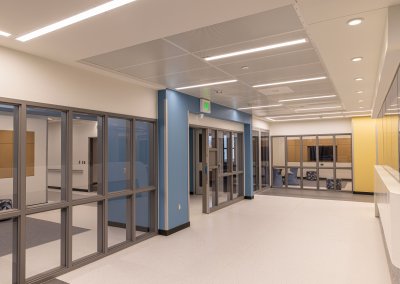

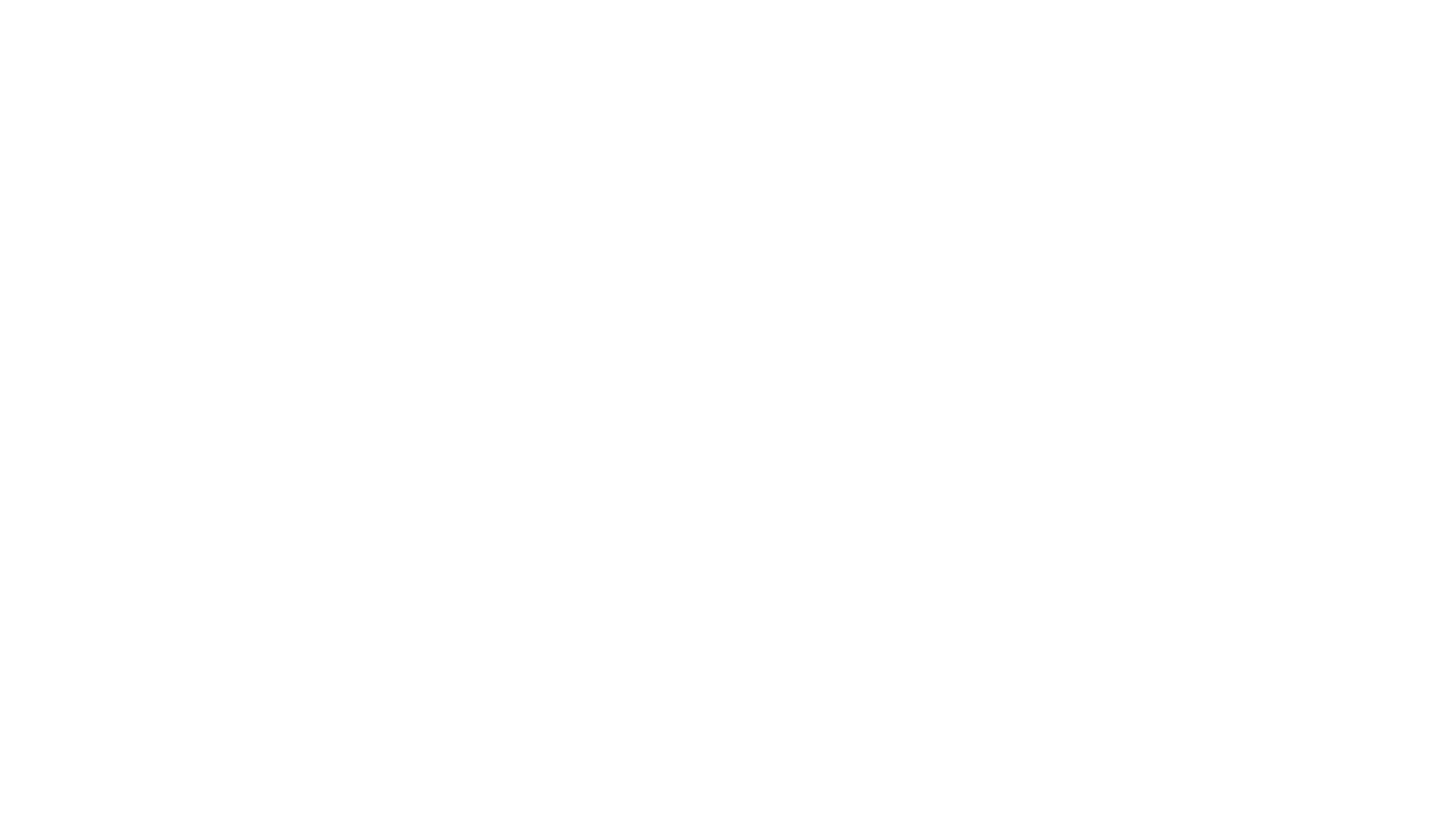

DRAWING DETAILS
BROCHURE
SPECIFICATIONS
CLEANING & MAINTENANCE
PHOTO GALLERY

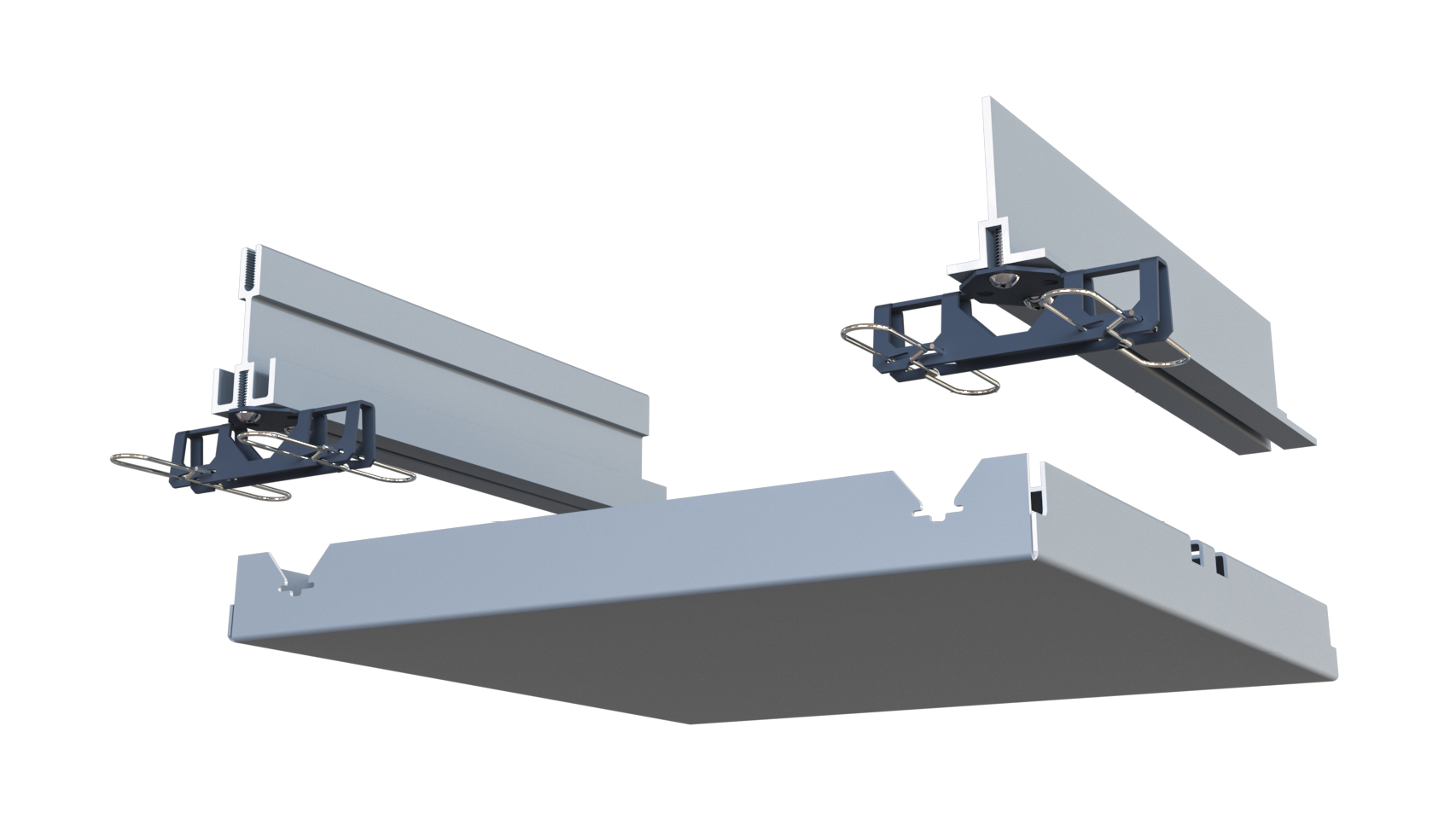

WinLok™ MH Accessible Security Ceiling and Soffit Systems features a concealed suspension system with snap-up, torsion spring panels. The panels attach to the concealed suspension and butt together to project a monolithic appearance that is both aesthetically pleasing and easy to install. Panels provide security to the plenum and are easily removable for plenum access with the special access tool. WinLok™ MH Ceilings and Soffits can also integrate Gordon security lights and security air distribution. Our Durable, Antimicrobial, AAMA certified powder coated finishes offer infection control, occupant safety and maintainability while the Therapeutic color offerings help create a warm, comfortable space for patients, visitors and healthcare workers.

U.S. Patent No. 10113317, 11168477, 12049758

WinLok™ MH Ceilings and Soffits have been selected for security, safety, and accessibility by the New York State Office of Mental Health for their patient standards guide.

Patient Safety Standards Guidelines (ny.gov)

Panel Options

Panel Width: 30″ up-to 57”
Panels Length: 30″ up-to 144”

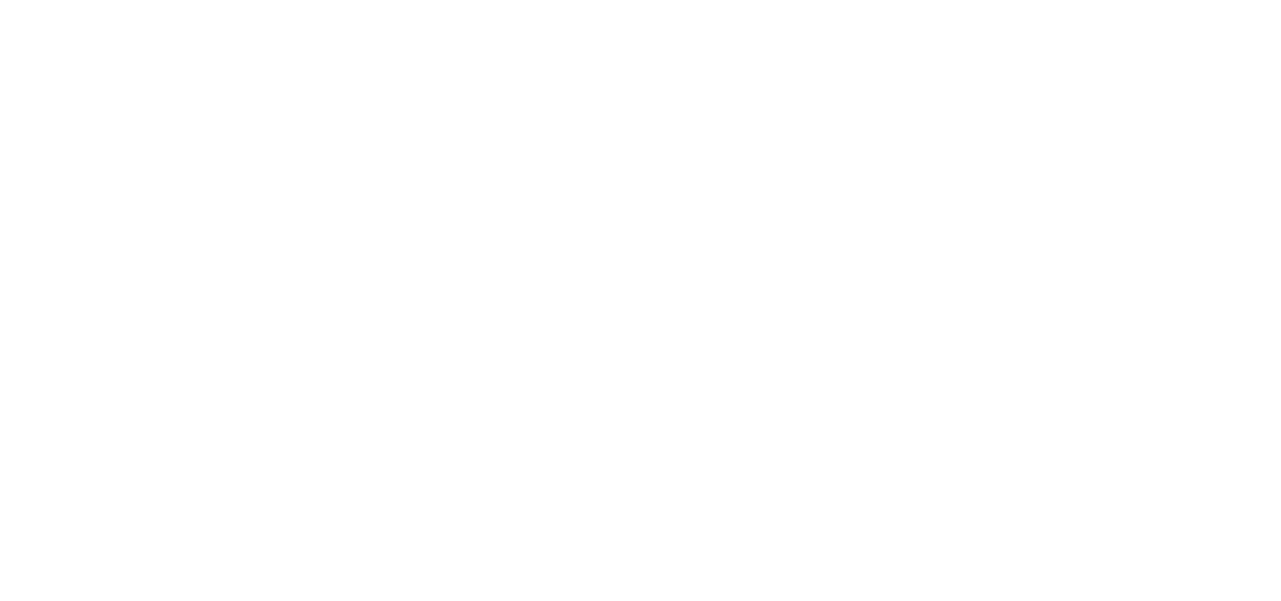

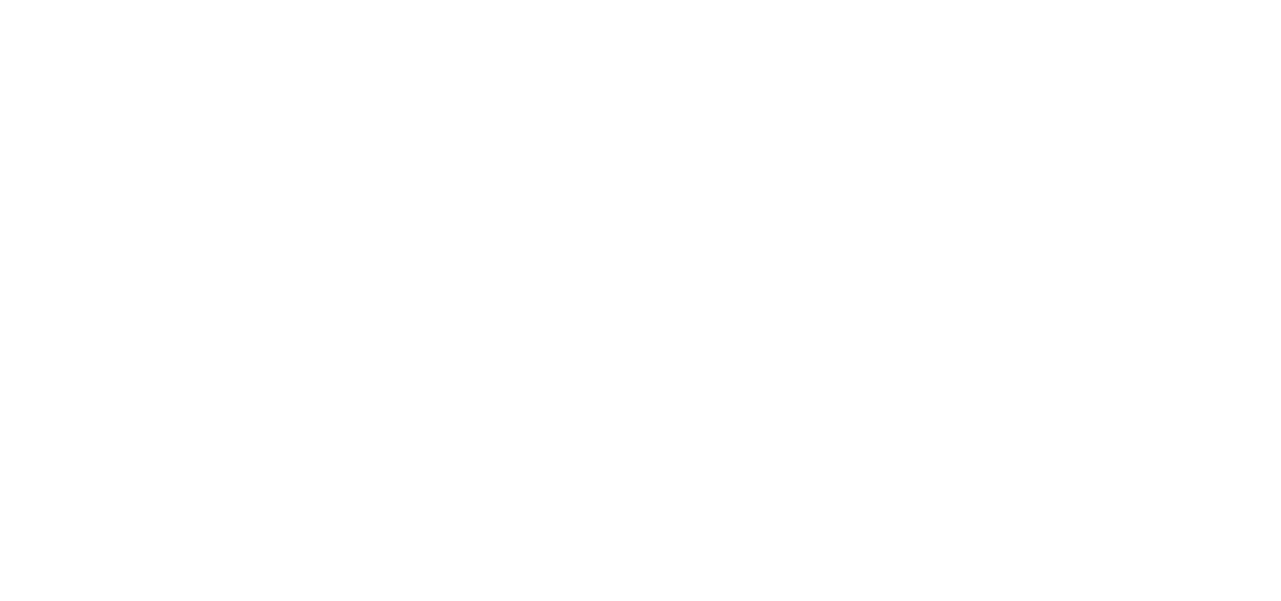

Surface: Perforated or Non-Perforated
Configurations: Flat
Standard shapes: Square, Rectangle

Panel Material Options

Aluminum: 0.040″ – 0.188″
Stainless Steel: 20 ga. – 16 ga.

Suspension

Heavy Duty Extruded Aluminum Suspension
Configurations – Faceted, Sloped, and Flat
Attachment clips with horizontal torsion spring (100 lbs per clip holding force with .050 aluminum panels)
Custom security access tools
Reveals Available
Typically wall to wall applications with Perimeter angles / channels
Engineered to meet your design requirements

Accessories

Flexible hose sprinklers
Custom speaker panels
Columns Collars / Rings
Various Perimeter options
- Gordon’s Contura Perimeter Trim
- Wall angles
- Pockets
Acoustic Pads / Sound Fleece
Backer Panels

System Integration

Airslots / Security Airslots
Lighting / Security Lighting
Sprinklers
Penetrations for electrical devices

Green By Design

Products contribute to LEED® certification
In-House Finishes
- Biodegradable pre-treatment and powder coating (no phosphates)
- No hazardous waste
- No VOC’s
- No Heavy Metals
- Reference our sustainability page for more information.

WinLok™ MH Accessible Security Ceiling and Soffit Accessories

LOCKLITE SECURITY CEILING LIGHTS
LockLite Security Ceiling Light fixtures are designed to integrate with WinLok™ MH Accessible Security Ceiling and Soffit Systems. WinLok™ MH LED light fixtures for recessed applications are available 24” wide with lengths of 24” and 48”.

RECESSED FIXTURES BROCHURE

SURFACE MOUNTED FIXTURES BROCHURE

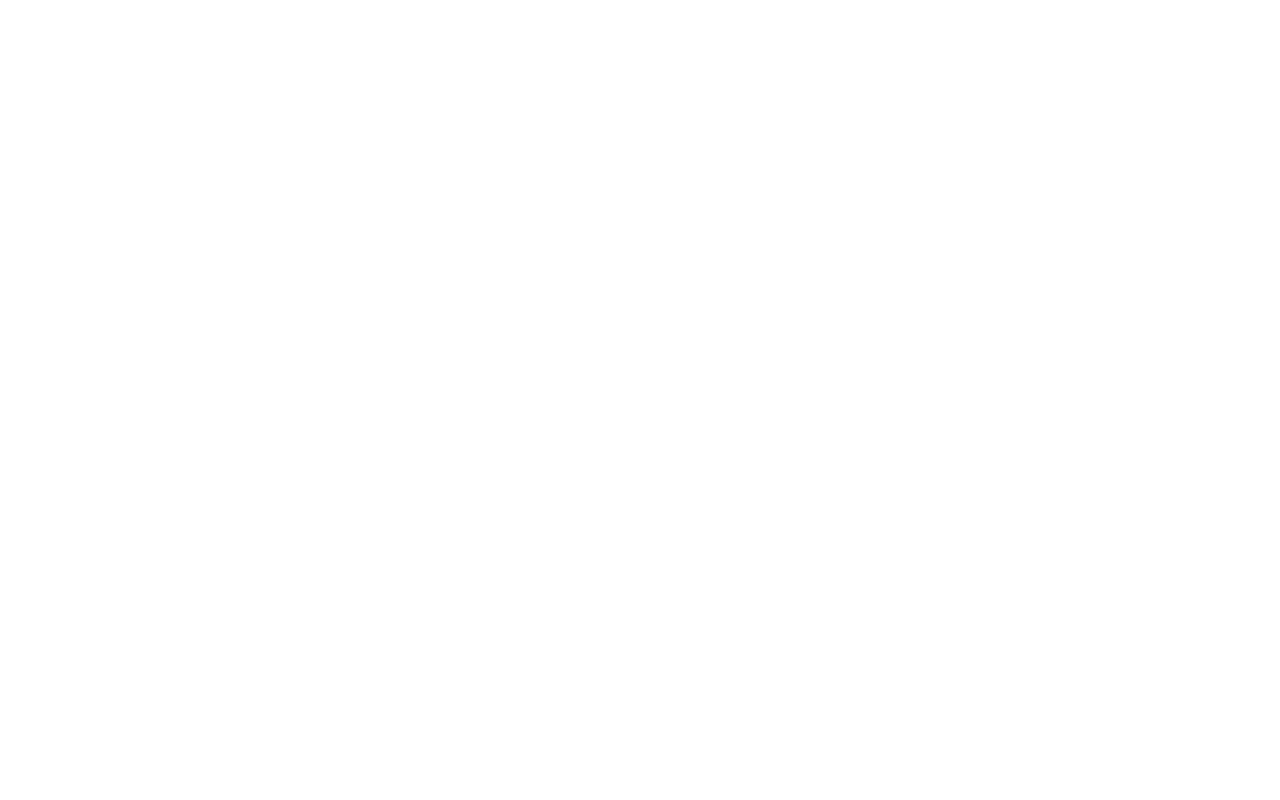

SECURITY AIR DISTRIBUTION – DIRECTIONAL DIFFUSER & RETURN VENTS
WinLok™ MH Air Distribution provides directional air intake and return ventilation for Security Ceilings.

AIR DISTRIBUTION BROCHURE
