Batten attachment systems are versatile panel systems where panels are secured with concealed fasteners for clean, uninterrupted lines. Its simple clip and snap design make for fast and easy installation without compromising on durability and wind resistance.

Features & Benefits

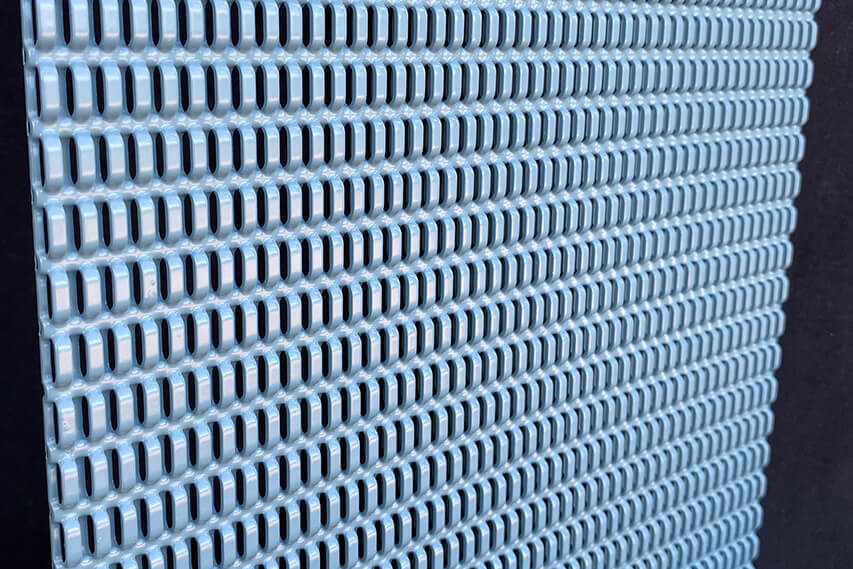

Batten screen wall systems utilize MILLENNIUM® panels. MILLENNIUM® is a 3 dimensional metal surface that provides a unique visual texture. Panel looks opaque when viewed straight, however when viewed at an angle the transparency caused by expanded metal becomes visible. MILLENNIUM® panels add dimension and character to any flat, convex, concave, sloped and undulating surfaces.

Panel Specifications:

  • 0.063” thick Aluminum expanded to ¼” thick tubular pattern
  • Approximately 40% open area
  • Factory fabricated to the desired size and shape
  • Module sizes up to 5’ wide X 12’ long

Materials

  • ALUMINUM
    • .063″ MILLENNIUM®
    • Approximately 40% open area

Fabrication

  • DESIGN APPLICATIONS
    • Perforated for acoustics or decorative design
    • Flat
    • Curved
    • Reveal
  • PANEL SIZES
    • Up to 5′ x 12′

Green By Design

  • Products contribute to LEED® certification
  • In-House Finishes
    • Biodegradable pre-treatment powder coat (no phosphates)
    • No hazardous waste
    • No VOC’s
    • No Heavy Metals
    • Reference our sustainability page for more information.

Finish Options

AAMA 2604 Powder Coat Finishes Download PDF

AAMA 2605 Powder Coat Finishes Download PDF

Therapeutic Powder Coat Finishes Download PDF

Perforation Options

MILLENNIUM® Panel Surface

Product Data

Standard Wall Intersection ISO Assembly

Standard Snap Trims

Reveal Snap Trims

Outside Corner Detail

Inside Corner Detail

J Trim

J Trim Reveal

J Trim Outside Corner

Reveal R-Trim

1/4″ Reveal Trim

1/4″ Spacer Detail

3/8″ Spacer Detail

1/2″ Spacer Detail

5/8″ Spacer Detail

Cleaning & Maintenance
