Gordon's Acoustical Wall Panels are widely used in gyms, swimming pools, and industrial applications, providing exceptional sound absorption per unit.

Features & Benefits

Acoustical Wall Panels Specifications

CORE

SIZES

FACING

FIRE RATING

STANDARD THICKNESS

STANDARD DENSITY

STANDARD WIDTHS

MAXIMUM WIDTH

STANDARD LENGTHS

MAXIMUM LENGTH

MATERIAL OPTIONS

PER ASTM E-84

1/2" to 2"

2-1/2#, 3#, 4#, 6#

24", 48"

48"

4', 8'

10'

PVC, PVF, Sailcloth

Class A

Mounting

Type A: Slight Puckering on Fabric Face
Type B: Clean, Smooth Facing

Acoustical Performance

ACOUSTICAL TREATMENT DETAILS

1/3 OCTAVE CENTER FREQUENCY (Absorption Coefficient)

ABSORPTION TOTALS

SYSTEM

DESCRIPTION

FACING

125

250

500

1000

2000

4000

NRC

SAA

SABINS*

Fully Encapsulated Wall Panel

2" Thick x 3 lb. Density

4 mil PVC

0.41

0.91

1.38

1.09

0.57

0.25

1.00

0.99

71.40

Quiet Coordinates Wall Panel

2" Thick x 2 lb. Density

White Matte

0.33

0.63

0.99

1.06

1.01

0.98

0.90

0.93

66.78

Quiet Coordinates Wall Panel

2" Thick x 1.8 lb/3 lb. Dual Den

White Matte

0.32

0.64

1.06

1.08

1.03

1.04

0.95

0.95

68.34

Quiet Coordinates Wall Panel

2" Thick x 1.8 lb/3 lb. Dual Den

White Matte

0.86

0.98

0.87

1.01

1.03

1.09

0.95

1.00

71.64

*Represents total Sabins for total area tested

For more comprehensive Acoustical Performance Data

Finish Options

Nylon Sail Cloth

Polyvinyl Chloride (PVC)

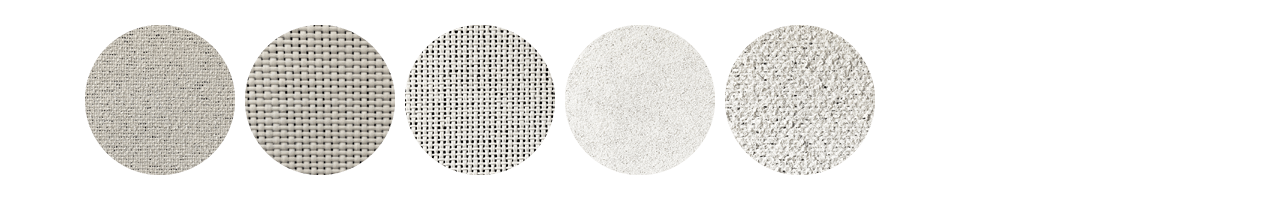

Glass Cloth Facing
