AAMA 2605 Powder Coat Finishes

Gordon AAMA 2605 Powder Coat Finishes are hard-surface, super-durable polyester powder coat finishes that provide high impact, chemical, and U/V resistance. Its inherent mechanical properties meet or exceed those of commonly accepted 70% PVDF finishes, yet are available without the high cost of application and the negative environmental impact of VOC's. Gordon AAMA 2605 Powder Coat Finishes perform beautifully in exterior "high abuse" environments, such as airports, hospitals, and malls where column covers and wall panels are required. With Gordon AAMA 2605 Powder Coat Finishes, an extended warranty up to 20 years is available.

Features & Benefits

Gordon AAMA 2605 Powder Coat Finishes provide the following advantages when compared to 70% PVDF liquid coating:

  • Textures are available
  • Broad gloss range
  • Superior pencil hardness
  • High abrasion and scratch resistance
  • Higher impact resistance
  • No VOCs emitted in pre-treatment process
  • Factory finished
  • Shorter lead-times
  • Direct shipping from factory to jobsite
  • EPA Compliant
  • Endures acid exposure, even against Sulfuric Acid

Antimicrobial Surfaces

Gordon offers Metal Claddings, Acoustical Metal Panels and Ornamental Metals with Antimicrobial powder coated surfaces that can make a BIG IMPACT to help inhibit the growth of bacteria, mold, fungus and other harmful microorganisms.

Our environmentally friendly AAMA 2604 & 2605 powder coated Antimicrobial surfaces are available in a wide variety of colors to meet your design requirements.

Custom Colors

AAMA 2605 Powder Coatings can be color matched in any desired color of your choice. Simply send us a control sample of the specified color or provide the RAL # for color matching purposes.

Standard Colors

An array of commonly specified colors listed below are available for a quick turn time.

Finishes shown on this card may vary in color from an actual coating. Color samples, supplied on an aluminum panel, provide an actual representation of color, gloss, texture, and hue and are available upon request.

STRATUS WHITE
PDR-70101
Gloss – Matte 20 +/-
LRV – 81

CIRRUS WHITE
PDR-70103
Gloss – Satin 40 +/-
LRV – 81

NIMBUS WHITE
PDR-70104
Gloss – Semi 60 +/-
LRV – 81

BALLET WHITE
PDR-70102
Gloss – Matte 20 +/-
LRV – 82

ALPINE WHITE
PDR-70108
Gloss – Satin 40 +/-
LRV – 82

GLACIER ICE WHITE
PDR-70105
Gloss – Semi 60 +/-
LRV – 82

MATTE BRONZE
PDR-70200
Gloss – Matte 20 +/-
LRV – 7

SCULPTURE BRONZE
PDR-70203
Gloss – Satin 40 +/-
LRV – 7
BRONZE SHIMMER
PDR-70201
Gloss – Semi 60 +/-
LRV – 7
ALPHA BRONZE
PDR-70206
Gloss – Matte 20 +/-
LRV – 10

PERSIAN BRONZE
PDR-70204
Gloss – Satin 40 +/-
LRV – 10

PHOENICIAN AGE BRONZE
PDR-70205
Gloss – Semi 60 +/-
LRV – 10

INFINITY BLACK
PDR-70400
Gloss – Matte 25 +/-
LRV – 5

OMEN BLACK
PDR-70403
Gloss – Satin 40 +/-
LRV – 5
BLACK OBSIDIAN
PDR-70401
Gloss – Semi 60 +/-
LRV – 5

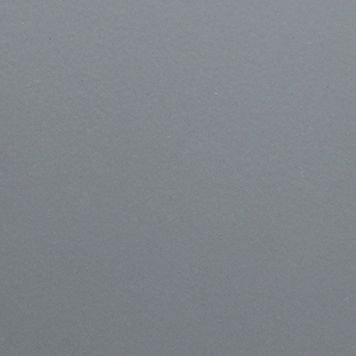

SILVER MOON
PDR-70804
Gloss – Matte 25 +/-
LRV – 46
LUNAR SILVER
PDR-70803
Gloss – Satin 40 +/-
LRV – 46
SOLAR SILVER
PDR-70805
Gloss – Semi 60 +/-
LRV – 46
PLATINUM SILVER
PDR-70800
Gloss – Matte 30 +/-
LRV – 35
SATIN SILVER
PDR-70801
Gloss – Satin 40 +/-
LRV – 35
RESTORATION SILVER
PDR-70807
Gloss – Semi 60 +/-
LRV – 35

Technical Data

Properties

Test Method

70% PVDF Liquid Coating

100% FEVE Powder Coating

Textures

N/A

No

Yes

Gloss Range (at 60°)

ASTM D523

20-35

20-65

Color Range¹

N/A

Wide range of solids & metallics

Wide range of solids & metallics

Smoothness (PCI Scale)²

PCI Tech Brief #20

6-8

6-8

Pretreatment, typ. ³

N/A

Tri/Hex Valent Chrome

Chrome-Free dry-in-place

Impact Resistance (deformation)

ASTM D2794

3.0 mm

3.0 mm

Pencil Hardness⁴

ASTM D3363

F

4H

Taber Abrasion (Wear Index)⁵

ASTM D4060

140

100

Adhesion

ASTM D3359

5B

5B

100 Double Rubs MEK

PCI Method #8

PASS

PASS

Mandrel Bend

ASTM D522

1/4"

1/4"

Film Thickness

ASTM D7091

1.2 min

2.0 min

South Florida UV Resistance

Per AAMA 2604-17a

20 years

Gloss retention: 50%+

Color Retention: △E <5.0

20 years

Gloss retention: 50%+

Color Retention: △E <5.0

Salt Spray Resistance

ASTM B117

3000 hrs.

3000 hrs.

Cyclic Corrosion

ASTM G-85

2000 hrs.

2000 hrs.

Humidity Resistance

ASTM D2247

4000 hrs.

4000 hrs.

Footnote:

1Color ranges can be limited by high chromaticity which could facilitate the need for a clear top coat.
2PCI smoothness is directed by a set of 10 standard panels that vary in smoothness; 1 being the least smooth and 10 which represents nearly perfect smoothness.

3Pretreatment chemicals for PVDF coatings typically contains either trivalent or hexavalent chrome. Chrome is a heavy metal and extremely hazardous. Gordon powder coatings are applied over chrome-free pretreated substrates and exhibit excellent performance.

4Pencil Hardness Scale:

5Taber Wear Index – Indicates rate of wear, and is calculated by measuring the loss of weight (in milligrams) per thousand cycles of abrasion. The lower the wear index, the better the abrasion resistance.

Environmental Policy

Our in-house finishing facility uses only water-soluble materials in our pre-treatment process. All overflow from this process is approved for introduction into our city water treatment plant without adverse impact to the environment. Gordon powder coat finishes are EPA compliant and contribute to the U.S. Green Building initiative.

Gordon’s environmental commitment is affirmed within our core Values, Beliefs, and Principles. Waste reduction and recycling are key elements of our business culture and are embraced by all Gordon team members.
