Acoustical Ceiling Trims

A large selection of trim heights from 1.5″ to 16″ is available to create innovative designs ranging from streamlined and graceful to bold and powerful. These extruded aluminum profiles offer the necessary curving flexibility, yet provide the durability required for handling and installation.

Positive locking splices with a setscrew attachment insure a tight joint between Contura sections. A special Twist-In clip simply rotates into the clip boss wherever grid attachment is required and is field attached to any manufacturer’s grid system. Contura is factory cut to your exact specifications, and corners are mitered and shipped with corner clips for field assembly. Welded corners are also available at an additional cost.

Curving

All Contura may be curved in both directions (inside or outside). With our current in-house capability, radii are limited to 24″ minimum for 1-1/2″ thru 8″ Contura and 48″ minimum for 10″ and 12″ Contura. Please consult the factory for arching capability or other radii requirements. We will strive to meet your needs.

Acoustical Profiles

Drywall Ceiling Trims

Gordon has a unique extruded aluminum drywall trim that provides easy installation and a seamless appearance that can only be achieved with a one piece profile. Gordon’s drywall Contura is provided with pre-punched taping flanges that can easily be taped and floated into and existing drywall soffit or ceiling condition. Custom fabrication is available with all drywall profiles including straight, curved and mitered configurations.

Drywall Profiles are pre-coated for field painting. Factory finishing is also available in any standard Gordon paint color and custom color matching is readily available.

Drywall Profiles

Vantage Point Ceiling Trims

VANTAGE POINT defines the space from below by creating a 3-1/2″, 5″, 6″, or 8″ wide picture frame.

  • Combine with 2″ CONTURA for use along the straight edges of wave ceilings
  • The strong, crisp reliability of extruded aluminum in colors that coordinate with any suspension system
  • Factory welded corners with 12″ legs
  • Fully integrated with acoustical and drywall ceiling systems

Vantage Point Profiles

Part #

Width

Height

Reveal Depth

VANTAGE POINT 3-1/2"

3-1/2"

2-3/16"

N/A

VANTAGE POINT 5"

5"

2-3/16"

N/A

VANTAGE POINT 6"

6"

2-3/16"

N/A

VANTAGE POINT 8"

8"

2-3/16"

N/A

VANTAGE POINT Reveal 6"

5 9/16"

2-25/64"

1/2"

Drop Point Ceiling Trims

Drop Point adds dimension, mass and attention to detail when viewed from any angle. Unique designs are encouraged.

  • Combine with 2″ CONTURA for use along the straight edges of wave ceilings
  • Extruded aluminum profiles provide a strong, crisp appearance
  • Available in colors to coordinate with any suspension system
  • Factory welded corners with 12″ legs
  • Fully integrated with acoustical and drywall ceiling systems

Drop Point Profiles

Part #

Width

Height

DROP POINT 6"

6"

2-3/16"

DROP POINT 8"

8"

2-3/16"

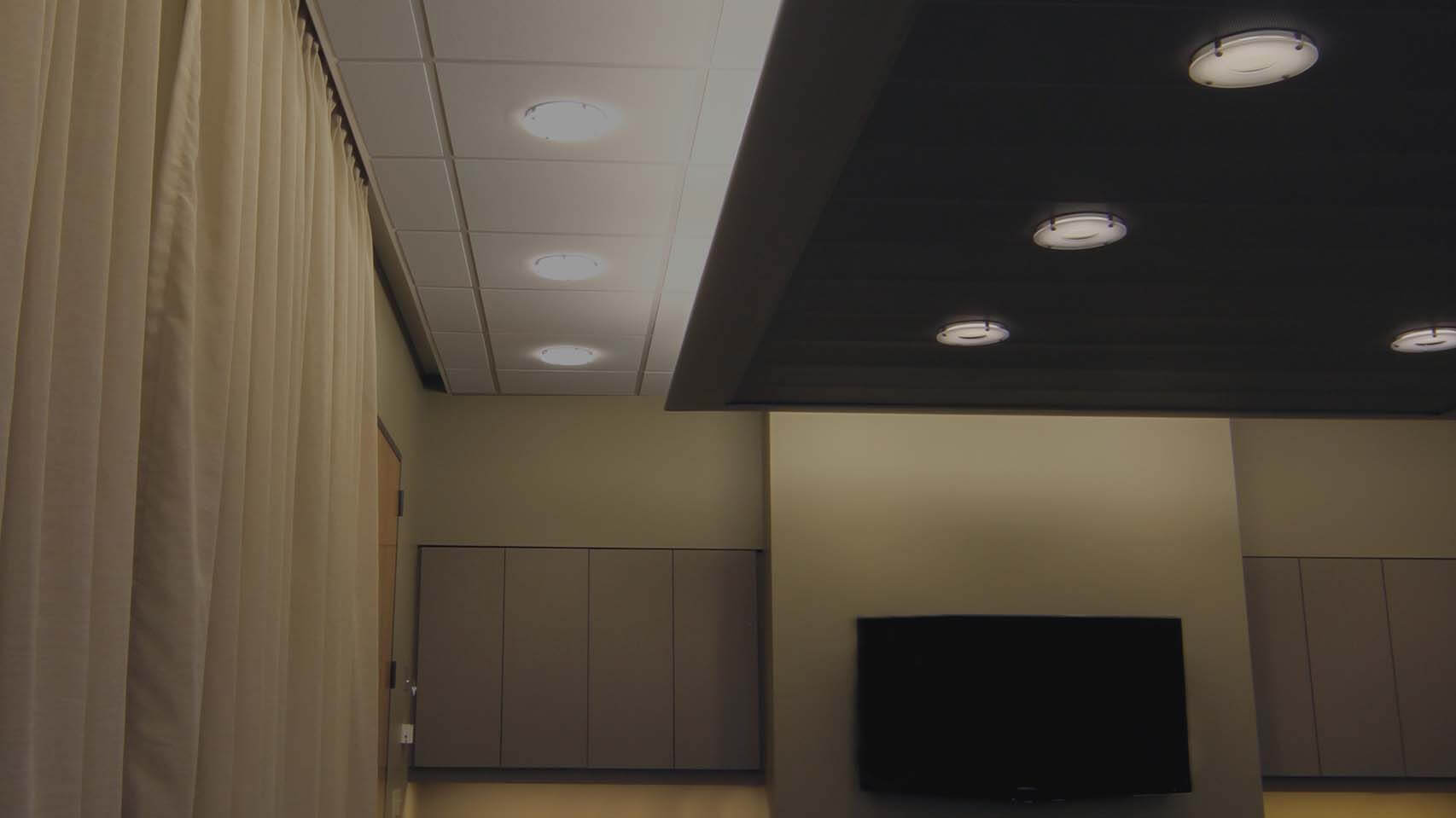

Soft Point Ceiling Trims

Soft Point Contura is an extruded aluminum trim that creates a unique decorative appearance at the perimeter edge of floating “cloud” ceilings.

Positive locking splices with a setscrew attachment and thumb screw connectors insure a tight joint between sections. A special Twist-In clip simply rotates into the clip boss wherever grid attachment is required and is field attached to any manufacturer’s grid system. Soft Point can be factory cut to your exact specifications, corners are mitered and shipped with corner clips for field assembly. Corners are welded corners and can be fabricated in inside or outside configurations.

Paired Contura Ceiling Trims

Create dynamic shaped ceilings – ribbons, circles, ovals, and rectangles

  • End caps and intersections are available
  • Can incorporate signage on fascia

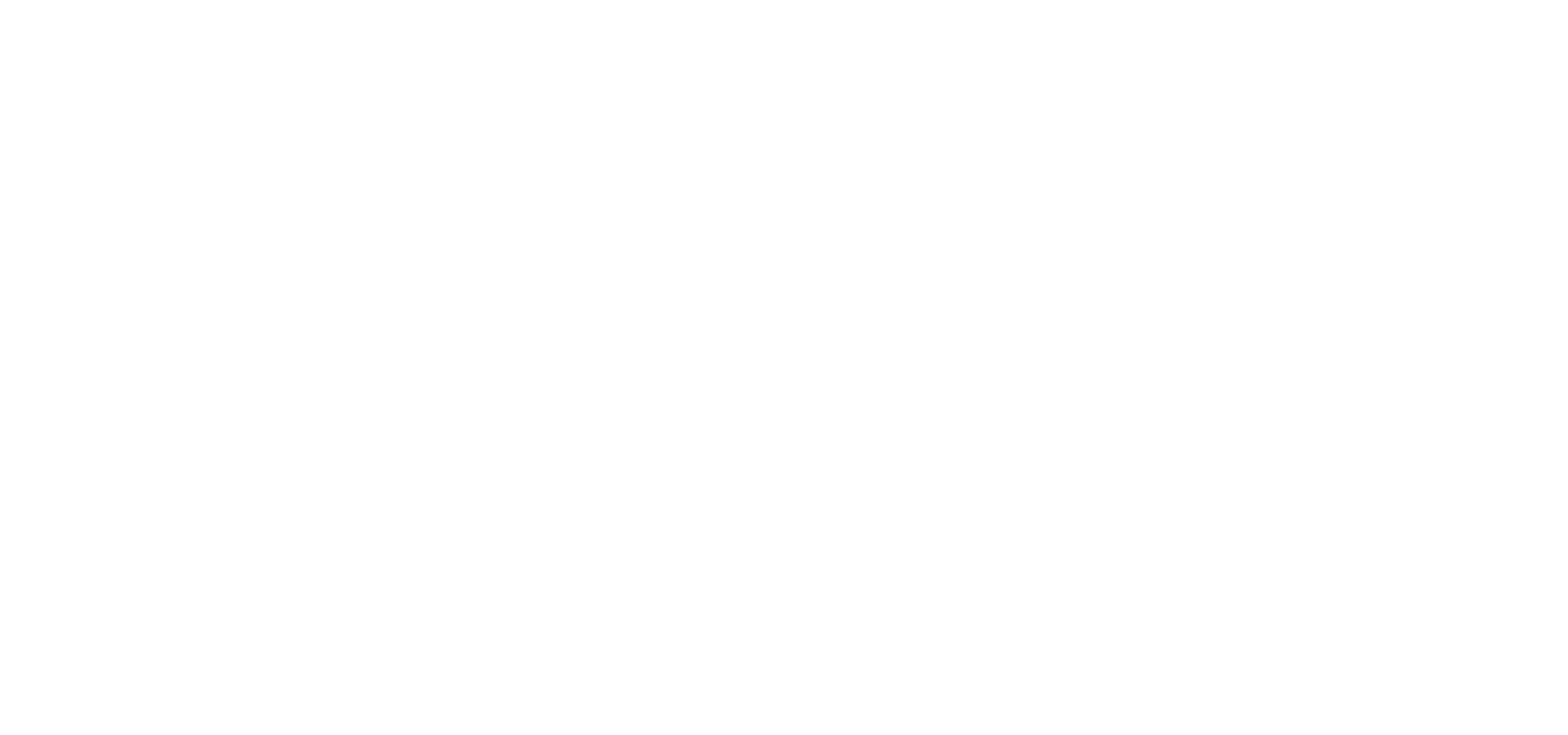

Paired Contura Profiles

Create Your Own Perimeter Trims

Gordon offers a variety of decorative custom profiles. These unique profiles offer a decorative element that perfectly complements your ceiling designs.

Transition Options

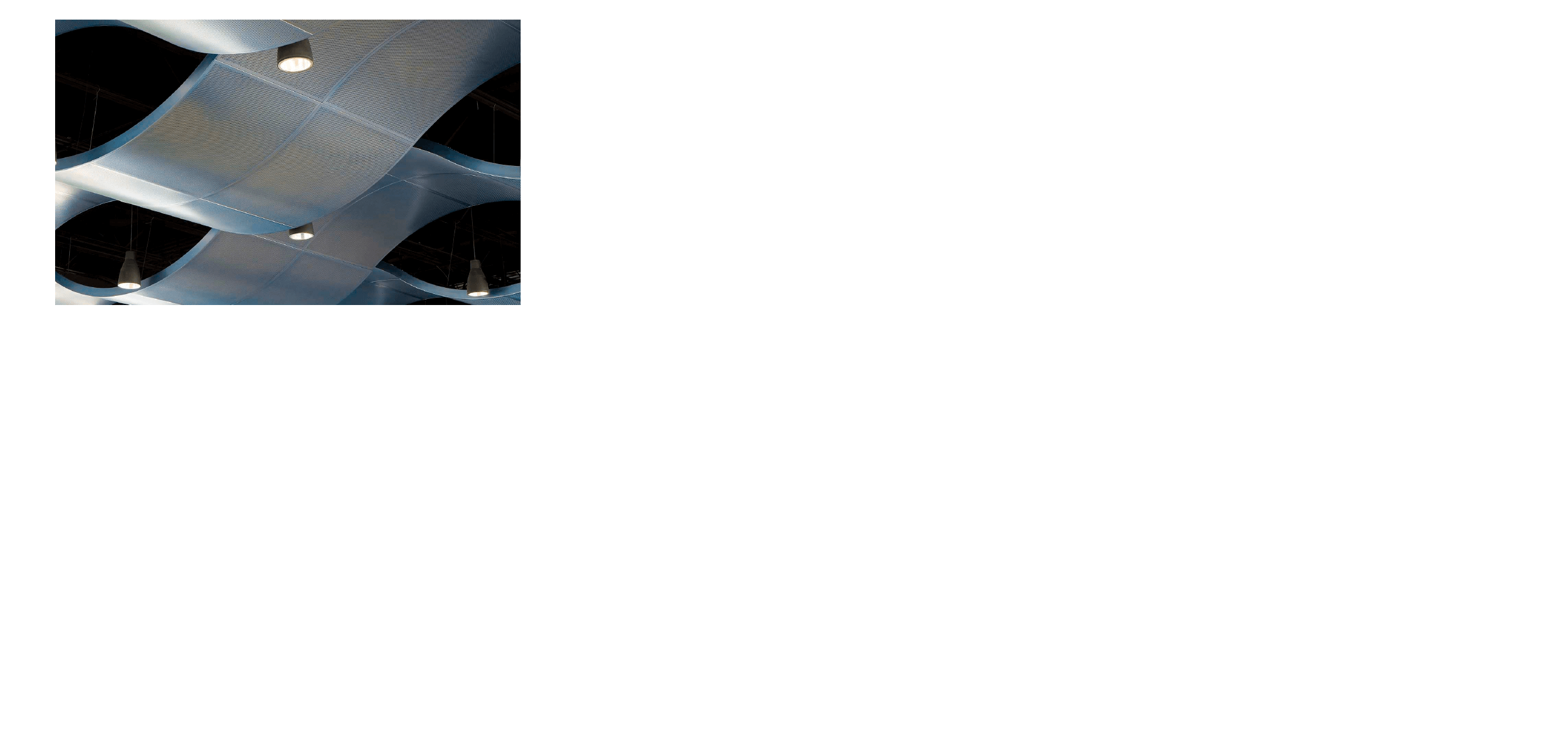

Perimeter Options

Fabrication Options

Finish Options

AAMA 2604 Powder Coat Finishes Download PDF

Therapeutic Powder Coat Finishes Download PDF

Wood Look Finishes (Wood Look Films Available for Acoustical Contura and Paired Contura)

Antimicrobial Finishes

Green By Design

  • Products contribute to LEED® certification
  • In-House Finishes
    • Biodegradable pre-treatment powder coat (no phosphates)
    • No hazardous waste
    • No VOC’s
    • No Heavy Metals
    • Reference our sustainability page for more information.

Product Data

CA-15 Profile Detail

CA-15 Assembly Detail

CA-2 Profile Detail

CA-2 Assembly Detail

CA-3 Profile Detail

CA-3 Assembly Detail

CA-4 Profile Detail

CA-4 Assembly Detail

CA-6 Profile Detail

CA-6 Assembly Detail

CA-8 Profile Detail

CA-8 Assembly Detail

CA-10 Profile Detail

CA-10 Assembly Detail

CA-12 Profile Detail

CA-12 Assembly Detail

CA-14 Profile Detail

CA-14 Assembly Detail

CA-16 Profile Detail

CA-16 Assembly Detail

Contura Drywall Profiles

CA-2-DW Profile Detail

CA-2-DW Assembly Detail

CA-4-DW Profile Detail

CA-4-DW Assembly Detail

CA-6-DW Profile Detail

CA-6-DW Assembly Detail

CA-8-DW Profile Detail

CA-8-DW Assembly Detail

CA-10-DW Profile Detail

CA-10-DW Assembly Detail

CA-12-DW Profile Detail

CA-12-DW Assembly Detail

2″ Contura Reveal Trim Detail

4″ Contura Reveal Trim Detail

6″ Contura Reveal Trim Detail

Contura Paired Profile Detail

Contura Paired Reveal Options Detail

Contura Paired Circle Configuration Detail

Contura Paired Ribbon Configuration Detail

Contura Paired 4-way Intersection Detail

3-1/2″ VANTAGE POINT Acoustical Detail

3-1/2″ VANTAGE POINT Drywall Detail

3-1/2″ VANTAGE POINT Inside Welded Corner Detail

3-1/2″ VANTAGE POINT Outside Welded Corner Detail

6″ VANTAGE POINT Acoustical Override Tee Detail

6″ VANTAGE POINT Drywall Detail

6″ VANTAGE POINT Inside Welded Corner Detail

6″ VANTAGE POINT Outside Welded Corner Detail

6″ VANTAGE POINT Reveal Detail

8″ VANTAGE POINT Acoustical Override Tee Detail

8″ VANTAGE POINT Drywall Detail

8″ VANTAGE POINT Inside Welded Corner Detail

8″ VANTAGE POINT Outside Welded Corner Detail

6″ Drop Point Acoustical Override Tee Detail

6″ Drop Point Drywall Detail

8″ Drop Point Acoustical Override Tee Detail

8″ Drop Point Drywall Detail

Drop Point Outside Corner Detail

Drop Point Inside Corner Detail

Drop Point TC-2 Clip Override Tee Detail

Drop Point Splice Detail

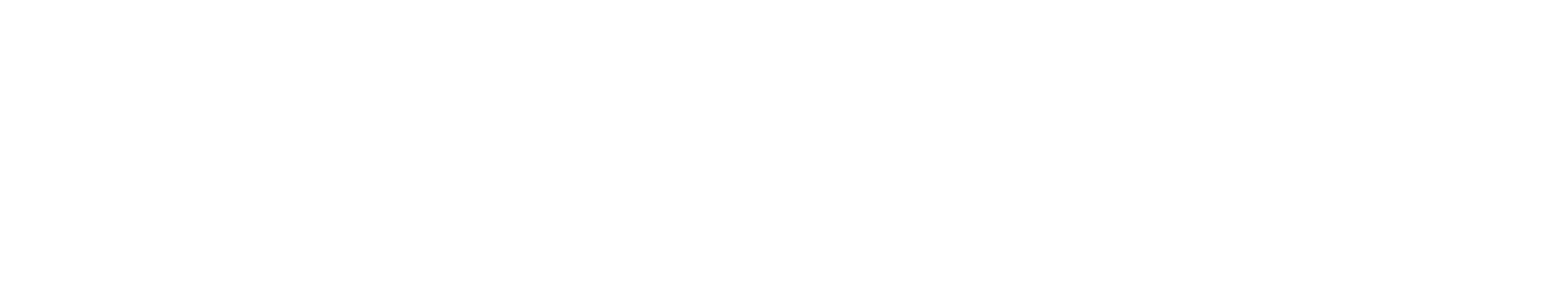

Soft Point Profile Detail

Soft Point Joint Splice Detail

Soft Point Section Detail

Soft Point Assembly Detail

Soft Point Outside Corner Detail

Soft Point Inside Corner Detail

Soft Point Section with Light Fixture Detail

2″ Stepped Perimeter Option Detail

2″ Reveal Perimeter Option Detail

2″ Stepped Cove Perimeter Option Detail

2″ Reverse Arched Perimeter Option Detail

2″ Arched Cove Perimeter Option Detail

2″ Crown Cove Perimeter Option Detail

2″ Contura Transition Detail

Contura 2″ XP Trim Detail

Contura 3″ XP Trim Detail

4″ Crown Perimeter Option Detail

4″ Arched Perimeter Option Detail

4″ Contura Transition Detail

4″ Contura XP Bullnose Detail

4″ Contura XP Trim Detail

6″ Contura Transition Detail

6″ Contura Drywall Transition Detail

6″ Contura XP Trim Detail

Custom Contura Transition 1 Detail

Custom Contura Transition 2 Detail

Acoustical Perimeter Trims Specifications

Drywall Perimeter Trims Specifications

VANTAGE POINT Perimeter Trims Specifications

Drop Point Perimeter Trims Specifications
