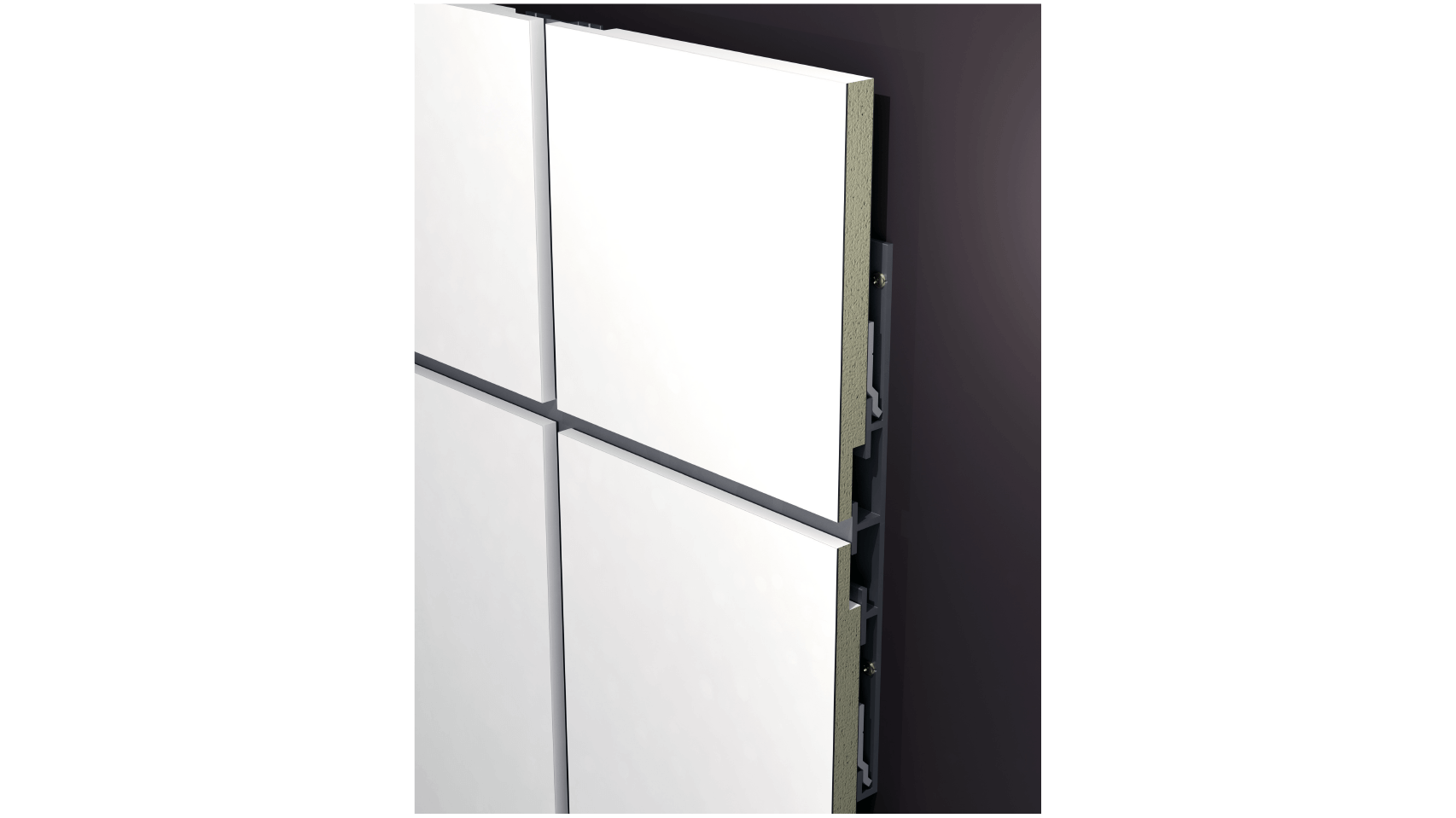

PG MR – 1000 Series
Mounting with reveal
CeramicSteel Wall System
PG MR -1000 series offers wall system with exceptionally durable and attractive CeramicSteel panels.
CeramicSteel walls are panelized wall systems that fuse PolyVision’s CeramicSteel panel and Gordon’s engineered wall system to give architects and designers more choices for high-performance wall systems. A state-of-the-art digital printing process and custom color options enable the wall panels to become works of art.
Features & Benefits
CeramicSteel Defined
CeramicSteel is one of the most durable cladding materials on the market. Fusing the best qualities of porcelain enamel to steel, CeramicSteel is an abrasion-resistant material that is ideal for high-traffic public spaces. Resistant to scratches, stains, graffiti and fire, the smooth surface can be customized with color and printing to create a one-of-a-kind design.
Materials
- CeramicSteel 3-ply composite panel
- Nominal ½” thick
- Transition trim members in stainless steel and Aluminum with Anodized and paint finish options
Fabrication
- DESIGN APPLICATIONS
- Non-perforated with routed MDF backer
- Flat
- Reveal
- PANEL SIZES
- Up to 46-5/8″ x 119″
Finish Options
Imagery Examples
EGRET WHITE
9016 G-M
GL ACIER WHITE
9003 G-M
A state of the art digital printing process for customizable graphics provide unmatched individualization for any project.
