Wall & Trim Reveals

Series 200 Edge Trim

Edge trim can be used as trim around vertical and horizontal raised wall panels and can be factory finished in custom colors.

Literature

Specification

Details

Part #

A

212

1/2"

258

5/8"

210

1"

2125

1-1/4"

2112

1-1/2"

2218

2-1/8"

230

3"

Series 300 Reveals

Vertical or horizontal reveal used to provide relief or breaks in long runs of drywall. Trims door frames or wall ends. Can be factory finished in custom colors.

Literature

Specification

Details

Part #

A

B

314-1/4

1/4"

1/4"

314-1/2

7/16"

1/4"

338-1/2

7/16"

3/8"

312-1/2

7/16"

1/2"

334-1/2

7/16"

3/4"

310-1/2

7/16"

1"

320-1/2

7/16"

2"

340-1/2

7/16"

4"

314-5/8

5/8"

1/4"

338-5/8

5/8"

3/8"

312-5/8

5/8"

1/2"

334-5/8

5/8"

3/4"

310-5/8

5/8"

1"

3125-5/8

5/8"

1-1/4"

320-5/8

5/8"

2"

325-5/8

5/8"

2-1/2"

330-5/8

5/8"

3"

340-5/8

5/8"

4"

360-5/8

5/8"

6"

310-100

1"

1"

Series 400 Reveals

Vertical or horizontal reveal used to provide relief or breaks in long runs of drywall. Trims door frames or wall ends and can be factory finished in custom colors.

Literature

Specification

Details

Part #

A

B

C

412-1/2 *

7/16"

1/2"

1/2"

434-1/2

7/16"

3/4"

3/4" *

410-1/2

7/16"

1"

1/2"

412-5/8 *

5/8"

1/2"

5/8"

458-5/8

5/8"

5/8"

5/8"

434-5/8 *

5/8"

3/4"

5/8"

410-5/8

5/8"

1"

5/8"

415-5/8

5/8"

1-1/2"

5/8"

* Extruded Insert Available

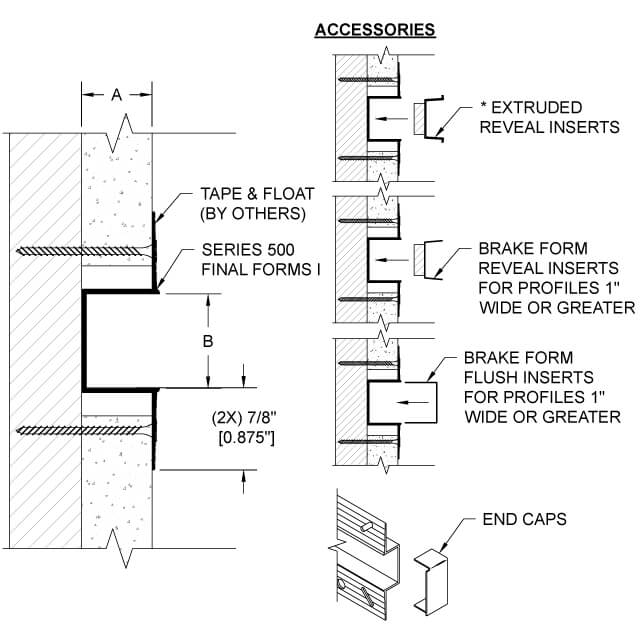

Series 500 Reveals

Vertical or horizontal reveal used to provide relief or breaks in long runs of drywall. Can be factory finished in custom colors.

Literature

Specification

Details

Part #

A

B

518-1/2

7/16"

1/8"

514-1/2

7/16"

1/4"

538-1/2

7/16"

3/8"

512-1/2*

7/16"

1/2"

558-1/2

7/16"

5/8"

534-1/2*

7/16"

3/4"

510-1/2

7/16"

1"

515-1/2

7/16"

1-1/2"

520-1/2

7/16"

2"

530-1/2

7/16"

3"

540-1/2

7/16"

4"

514-5/8

5/8"

1/4"

538-5/8

5/8"

3/8"

512-5/8*

5/8"

1/2"

558-5/8

5/8"

5/8"

534-5/8*

5/8"

3/4"

510-5/8

5/8"

1"

515-5/8

5/8"

1-1/2"

520-5/8

5/8"

2"

525-5/8

5/8"

2-1/2"

530-5/8

5/8"

3"

540-5/8

5/8"

4"

534-100

1"

3/4"

5125-100

1"

1-14"

520-100

1"

2"

515-125

1-1/4"

1-1/2"

520-125

1-1/4"

2"

520-200

2"

2"

* Extruded Insert Available
